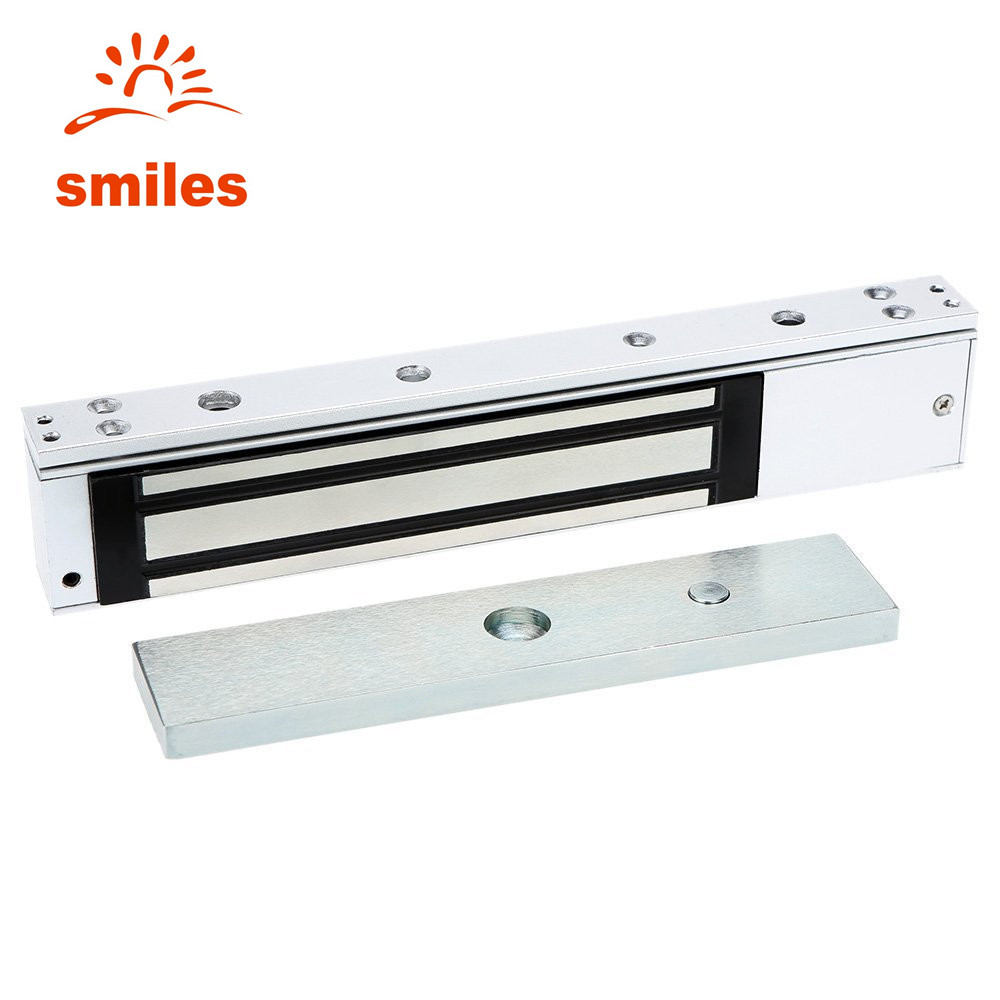

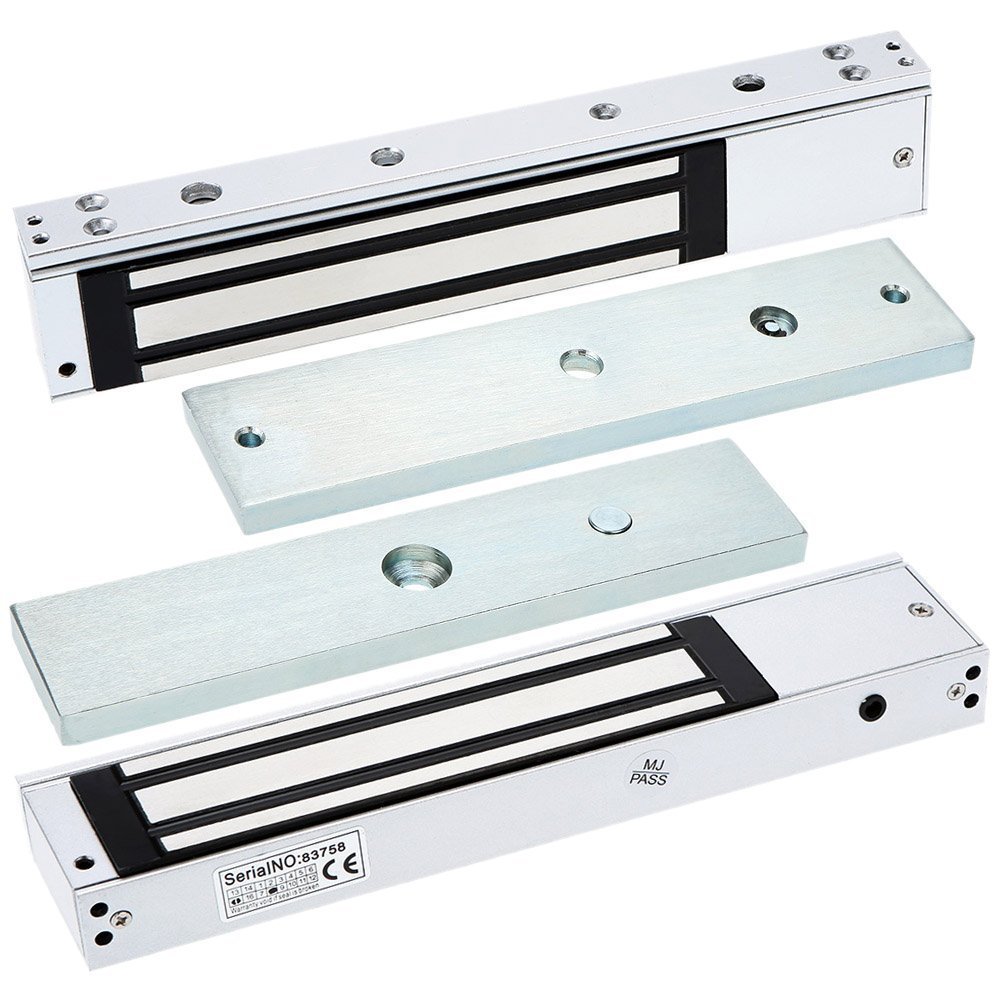

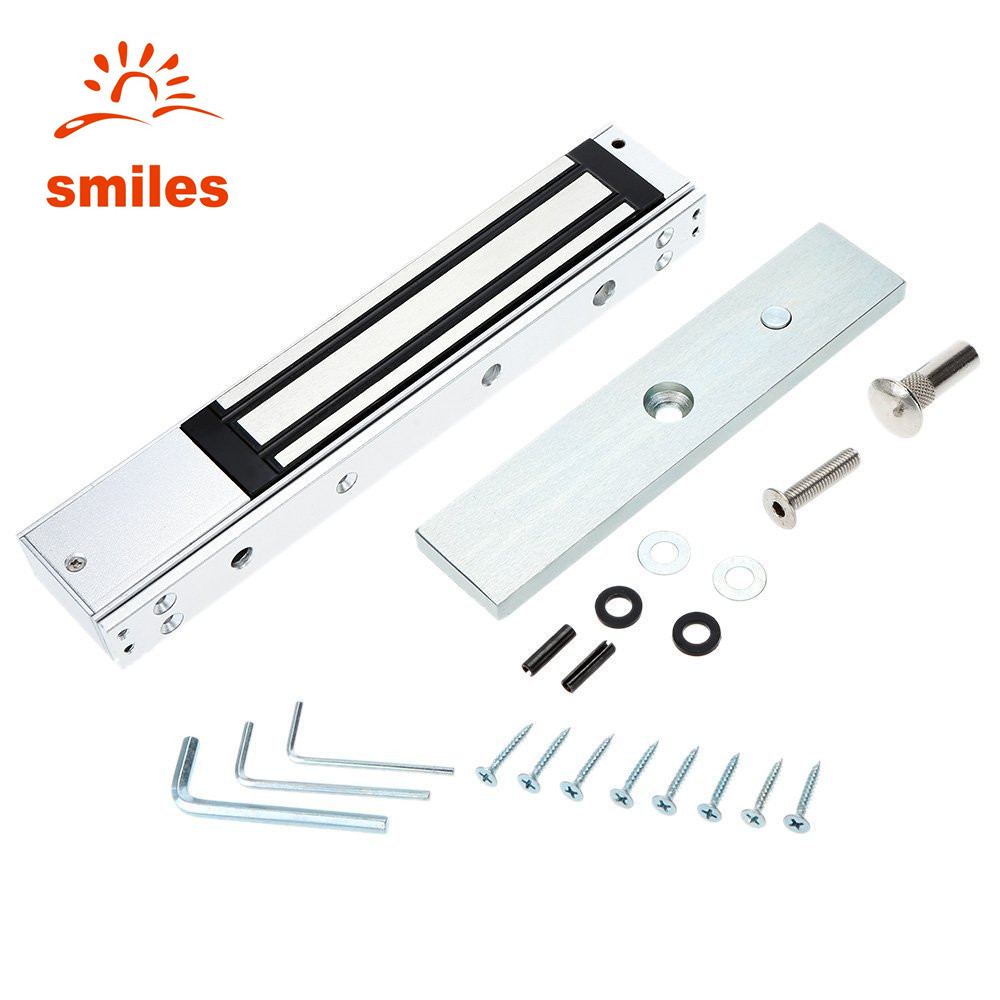

600LBS Holding Force Electro Magnetic Door Lock

  • Model Number: SL280
  • Holding Force: 280kg(600Lbs)
  • Input Voltage: 12 or 24VDC
  • Suitable: Wooden door , Glass door ,Metal door , Fireproof door
  • INQUIRY

Product Descripition


Specification

Product Name: 600LBS Hold Force Electromagnetic Door Locks

Holding Force: 280KG

Input Voltage: 12 or 24VDC

Current: 12V/500mA or 24V/250mA

Suitable: Wooden door , Glass door ,Metal door , Fireproof door

Size: 250Lx47Wx25H(mm)


Features


Lock size: 250 x 47 x 25mm


Armature plate: 180 x 38 x 11mm


Holding force: 280kg (600lbs)


Dual voltage: 12/24V DC


Current draw: 12V DC/480mA, 24V DC/240mA


Fail safe: locked when energized


Time: 0/3/6/9 seconds


Safety function: built-in voltage spike suppressor


Opening mode: 90° swinging door


Suitable for wooden doors, glass doors, metal doors, and fireproof doors
