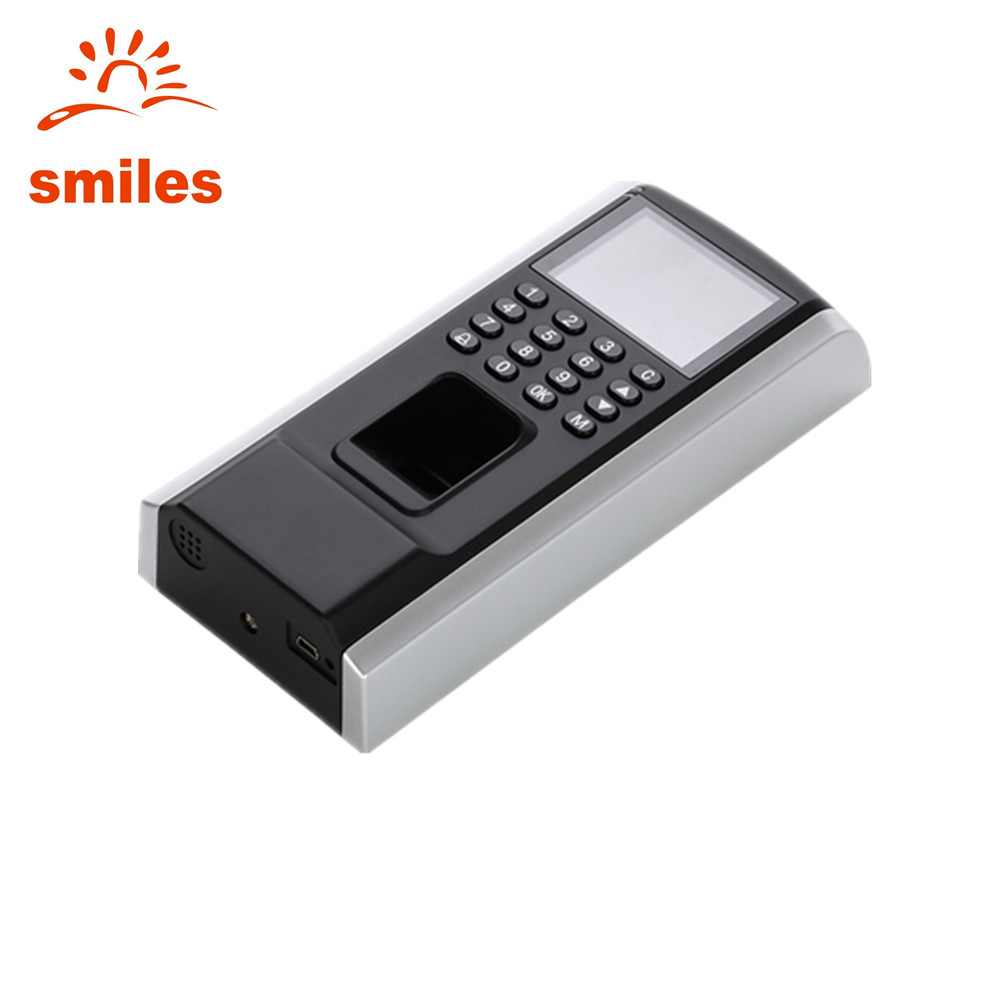

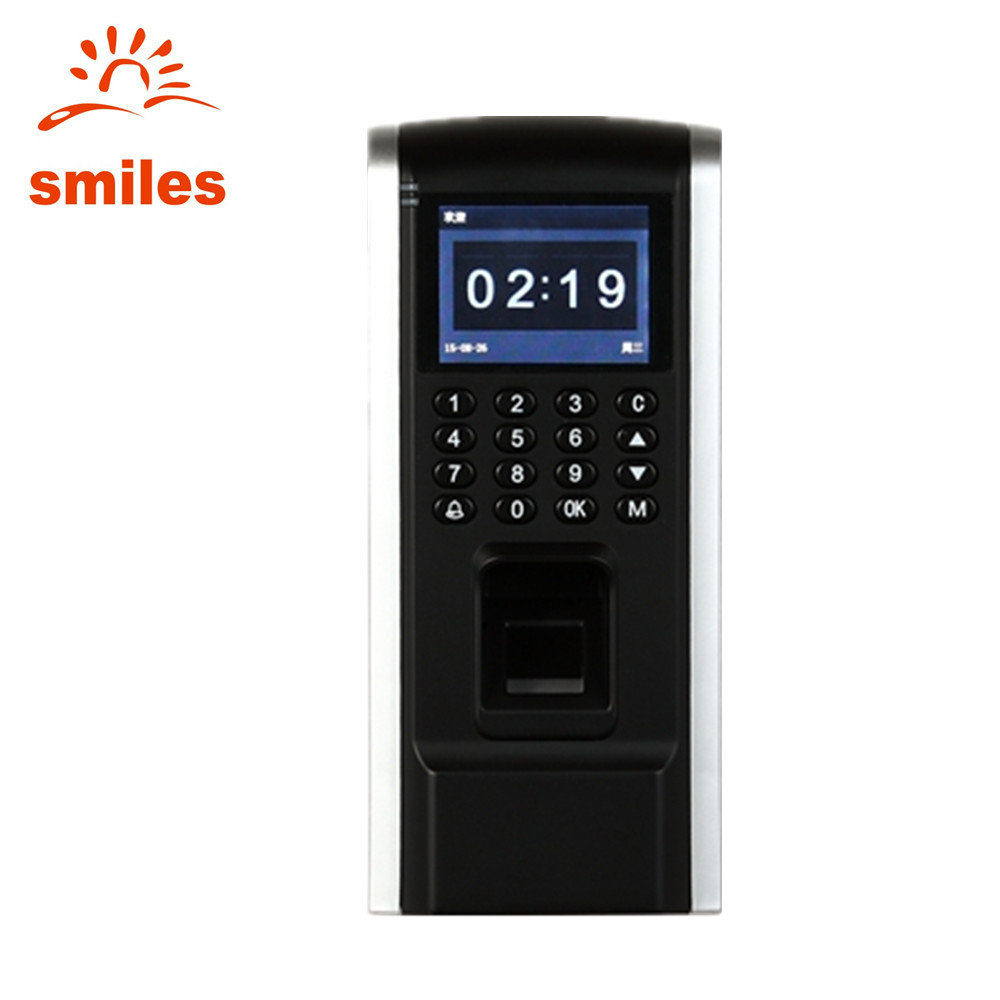

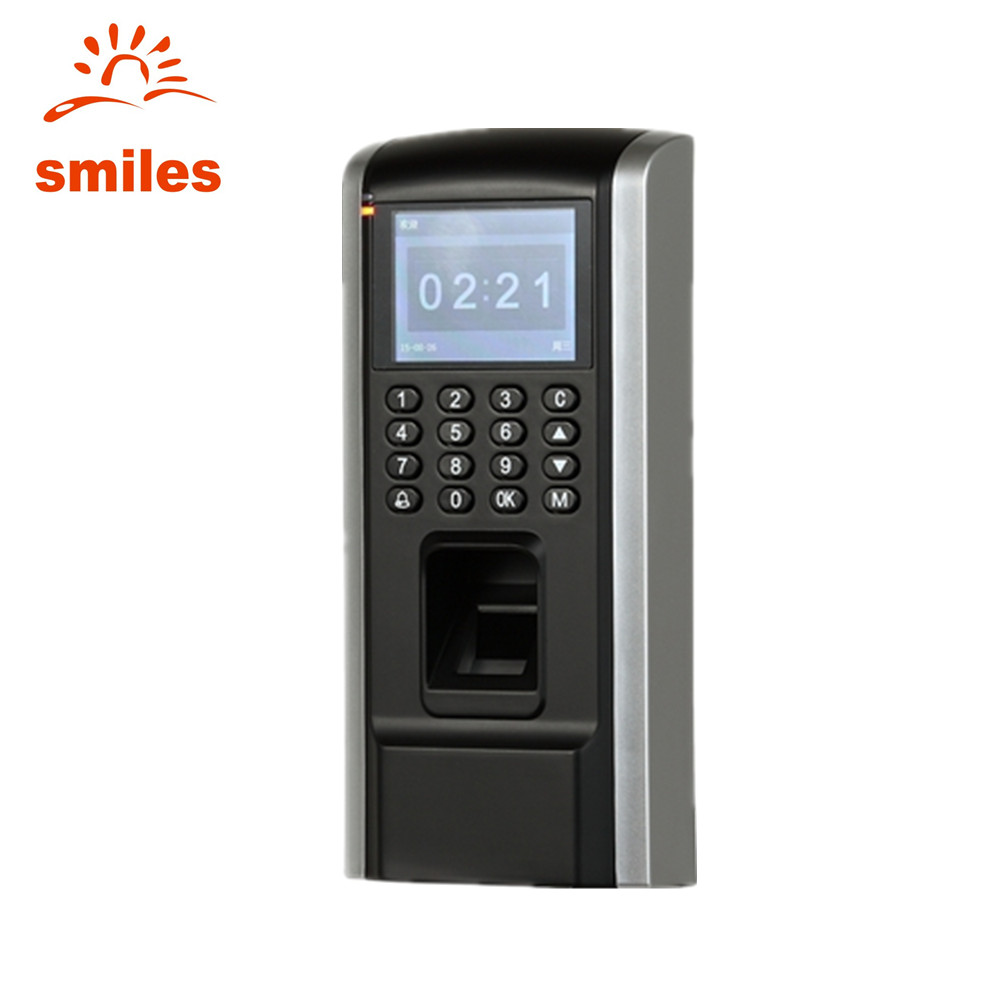

Free Software Fingerprint Time Attendance Machine Access Control With FP,RFID,PIN

Specification

Capacity: 3,000

Communication: TCP/IP,  USB Memory Disk

Authentication Method: Fingerprint/ RFID Card (125Khz)/Password

Fingerprint Sensor: 500DPI (Optical)

Identification time: <1S

Wiring Connections: Relay Output, Exit Button, DOTL, Alarm, Wiegand output, Door Bell

Display: 2.8 inch TFT Screen

Wiegand Interface: Wiegand 26 bits Output

Relay: NO, NC, Common

Power Supply: DC 12V

Operating environmen: Operating Temp: 0℃-50℃, Humidity:80%

Terminal Size: 14L x 10.5W x 3.5H (cm)

Features

Access Control / Time attendance

• 1000 FP users, 1000 card users, 1000 PIN users

• 100,000 event buffers

• Wiegand 26bits input & output

• Without voice guide

• MOS output

• When use as standalone access control, it should use the access control    power supply (With NO, NC,    and COM port power supply)

• can work with software for access control & time attendance

• Connect to PC via TCP/IP

• Manage different devices by one computer

• can also work as standalone time attendance (Simple operation)

• Time attendance without software

• USB disk to download report
