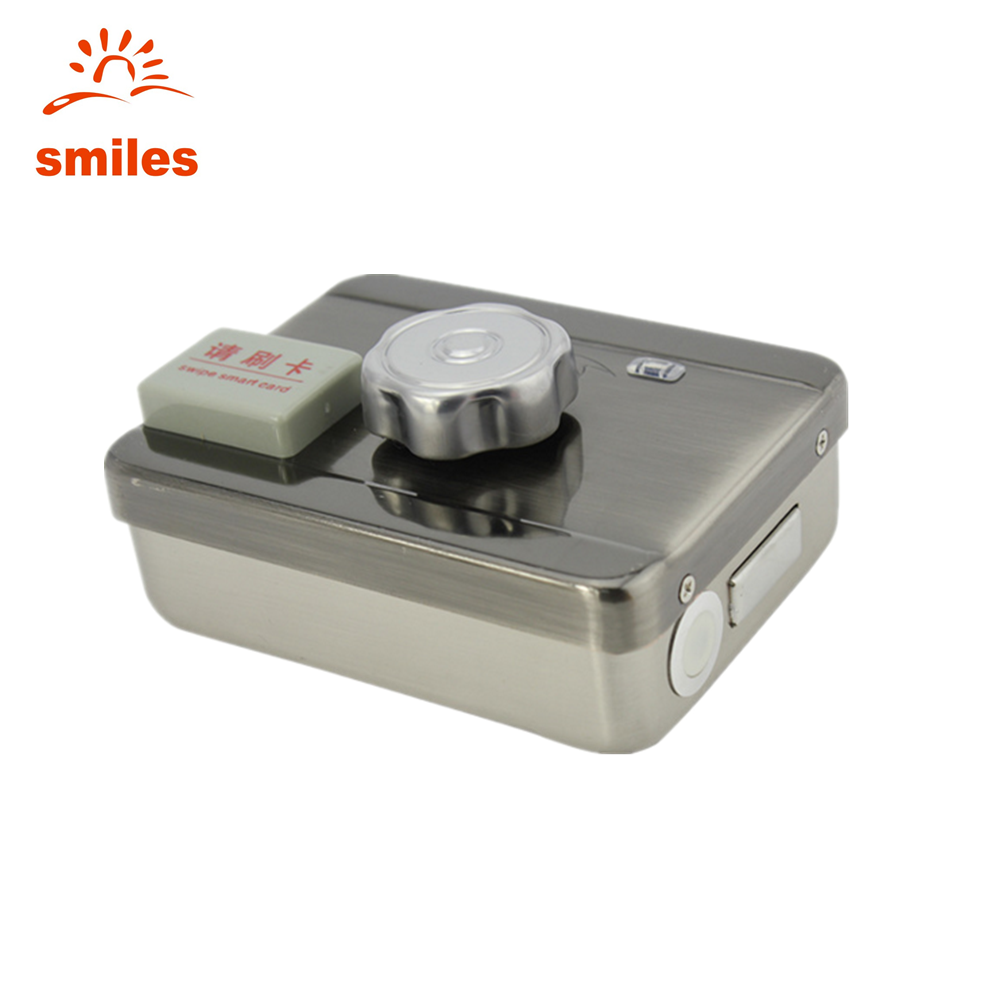

Electric Rim Lock
Intelligent Remote Control Electronic Door Rim Locks with RFID Reader
- Model Number: ES05
- Working Voltage: 9-12VDC
- Currency: 1.5-3.5A
- Memory capacity: 1000 user's card
Product Name: Electric remote control door lock
Memory capacity: 1000 user's card
Voltage: DC 9V-12V
Extension length of dead bolt: 20mm
Service life: 500,000 times
Operating Temp: -10~+55°C(14-131F)
1. Specially used for Access Controller system.Fits for electrical control, key or hand operation.Low noise, long life, power save, convenient installation.
2. Universal for left, right, in-swing and out-swing doors.Work with ID or IC card
3. Metal gear, five line synchronous motor, more stable than plastic gear, and longer life spans.
4. Crescent-shaped key cylinder, with key and more safety.Proportion of suitable dimensions, fine surface treatment, more in line with your aesthetic requirements
5. External card reader is available.
6. External remote control to open the door is available.
7. Low noise, Low consumption long life, convenient installation.

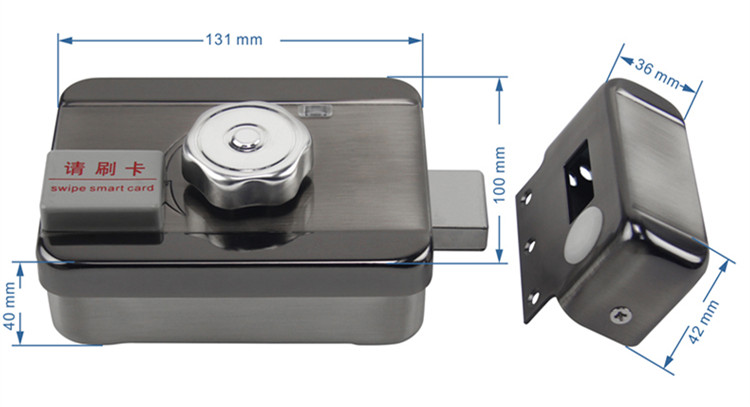

8. Dimensions: 131L*100W*40H(mm)
9. Weight: 1.45kg
