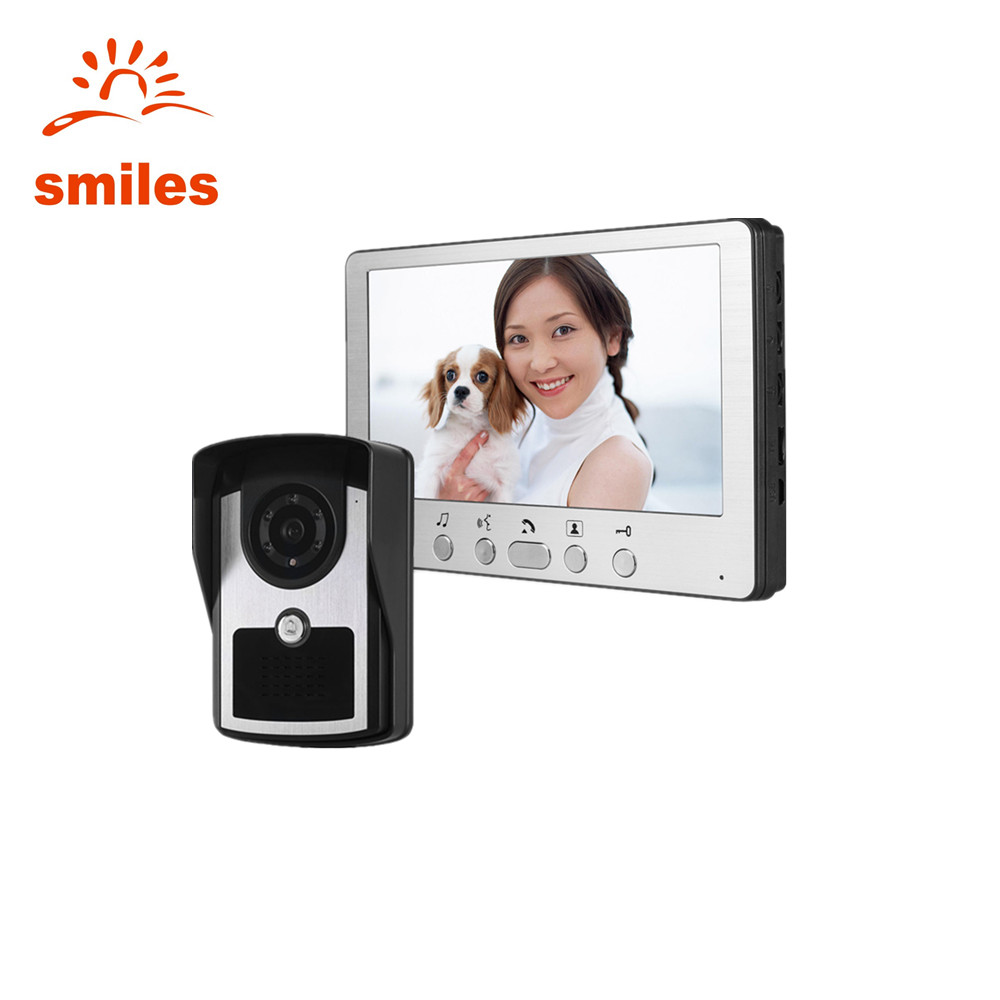

7 Inch LCD Coloful Ultra thin Wired Video Door Phone/Intercom Doorbell For Cottage

Specification

Product Name: 7” Color Wired Video Door Phone

Power: AC:100-240V/DC:15V1.2A

Screen: 7 inch digital screen

Installation mode: Wall-hung type

Connection mode: Four-wire, 5-core wire is added to extension

Infrared induction: Light sensor

Features

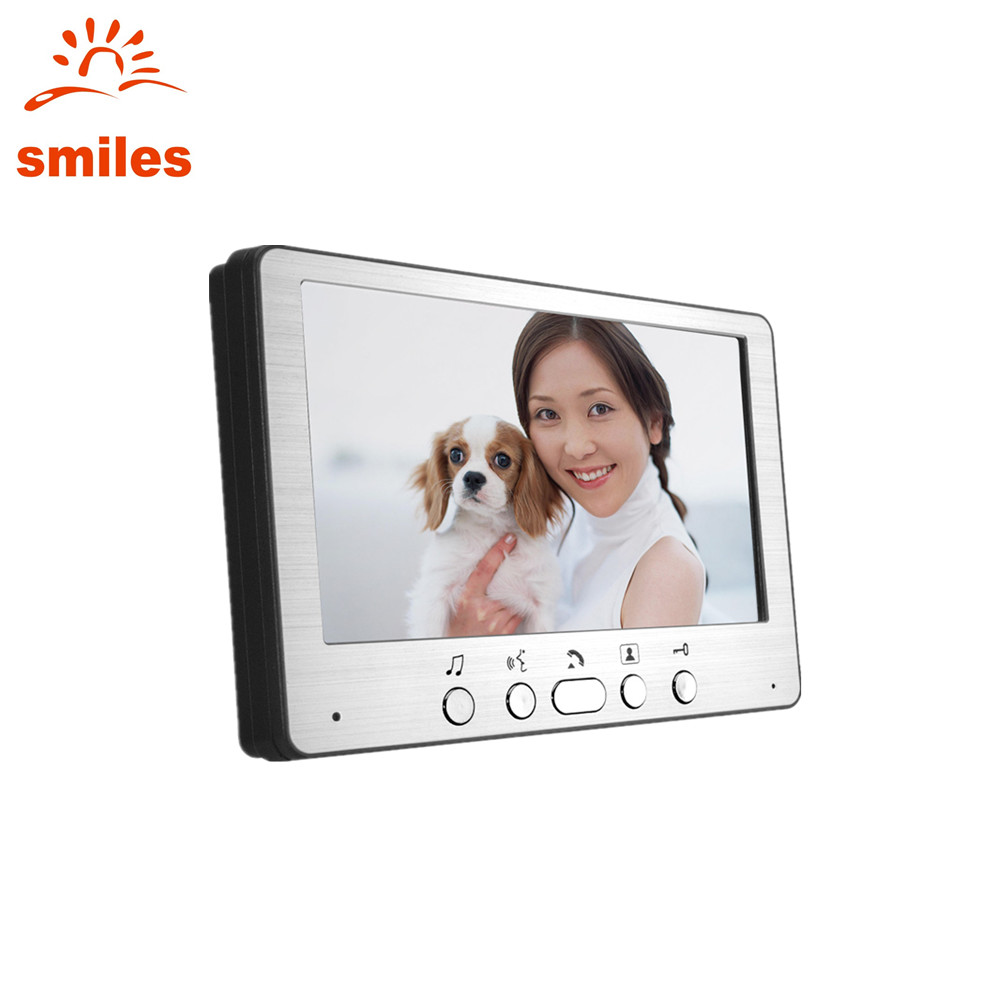

（1） Ultra-thin design luxurious style indoor machine, leading the new trend of color video door phones.

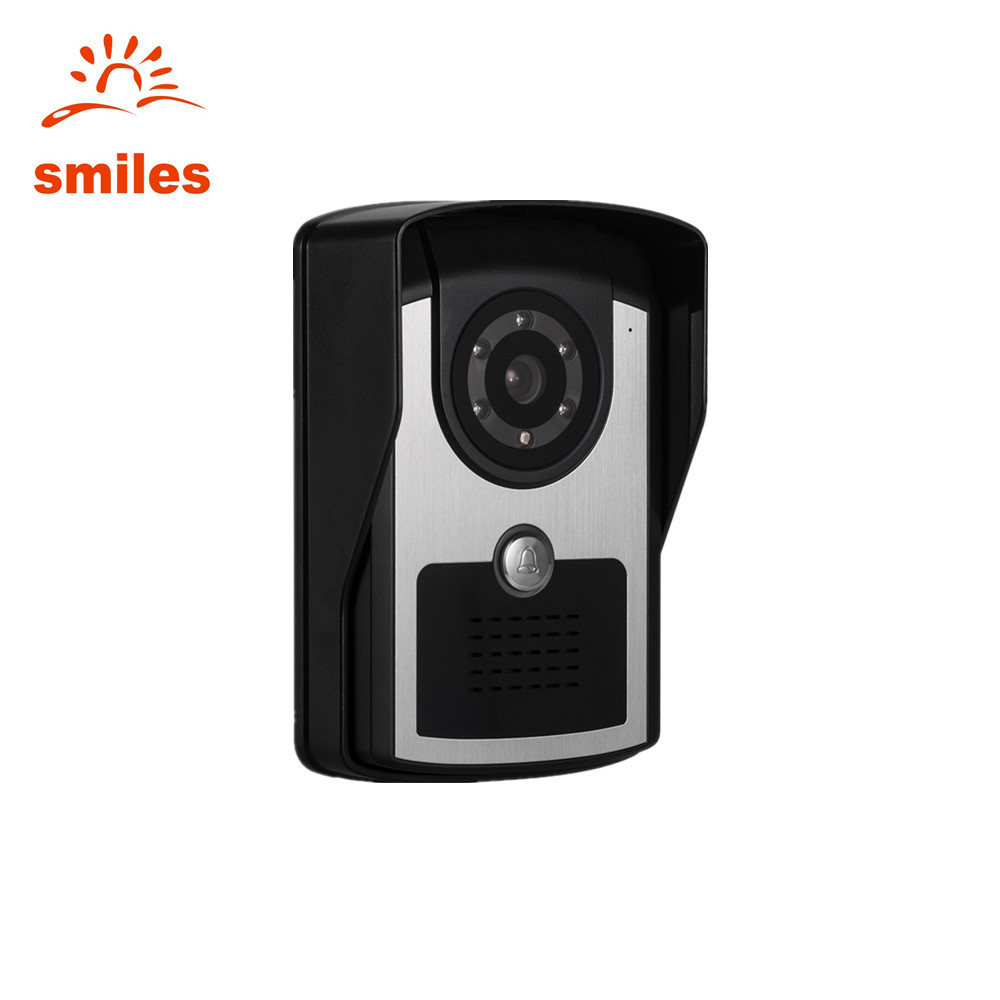

（2） Waterproof, anti oxidation and wear resistance outdoor unit, equipped with rain-proof cover, support embedded installation and hanging garment two modes.

（3）With IR night vision function, IR distance is about 1-3 meter.

（4）No radiation, low power consumption, high definition 7 inches color images.

（5）Monitor, intercom, unlock,hands-free, chord rings choice.

（6）With unlock function(Please add an Access Control power for power off unlock)

（7） Volume, brightness & contrast adjustable.

（8）4 cores wire connection between indoor monitor and outdoor camera

（9） Match can up to 1&1, 1&6, 2&1, 2&6 systems.

Operation Instruction

(1) Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.

(2) Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.

(3) Press the calling button, then the indoor monitor will hear the ringtones and show the image.

(4) Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).

(5) Press the talkback key and check whether indoor and outdoor talkback works normally.

(6) Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.

(7) For more than 2 indoor monitors, press the intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.

(8) Under the intercom mode, press the unlock button to check whether unlock works normally.

(9) You can safely use the product upon passed acceptance mentioned above.

Notices

(1) The machine should be placed on the place with solid, well-ventilated, dry and no direct sunlight, no strong magnetic fields and dust.

(2) Do not use chemical to clean the surface; clean, soft and dry cloth can be used to clean.

(3) Avoid to press multiple keys at the same time；

(4) Outdoor and indoor unit needs to match with specified models, and can not mix to use with other models or other company's product；

Do not open the machine without permission, please contact with your dealer or our technical department if you need any maintenance
