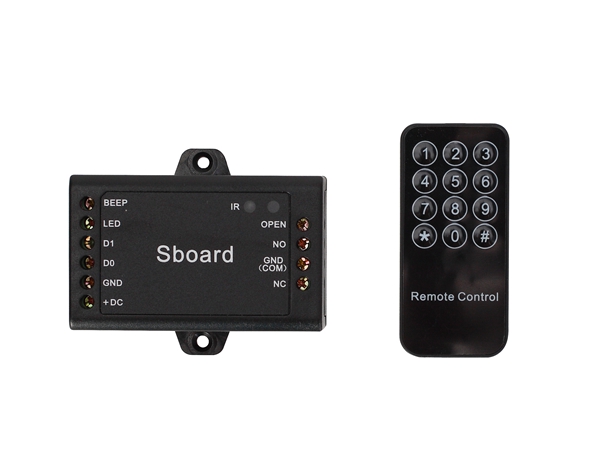

Mini Single Door Controller

Specification

Wiegand Interface: Wiegand 26~37 bits

Material: ABS

User Capacity: 1000 Users

Relay: One(NO, NC & COM)

Operating Voltage: 9~24V DC

Size: 6.5L x 5.4W x 1.9H (cm)

Features

1,000 users’ user data can be transferred

Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs

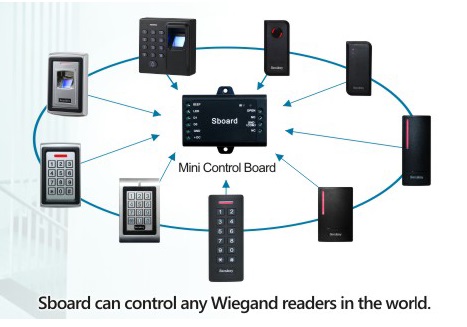

Can connect with any reader with Wiegand 26~37 bits output

Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output

Support Master Card function

Low temperature resistance(-40℃)
