  • Square Type 12V No Touch IR Exit Switch Stainless Steel For Door Access
  • Square Type 12V No Touch IR Exit Switch Stainless Steel For Door Access
Square Type 12V No Touch IR Exit Switch Stainless Steel For Door AccessSquare Type 12V No Touch IR Exit Switch Stainless Steel For Door Access

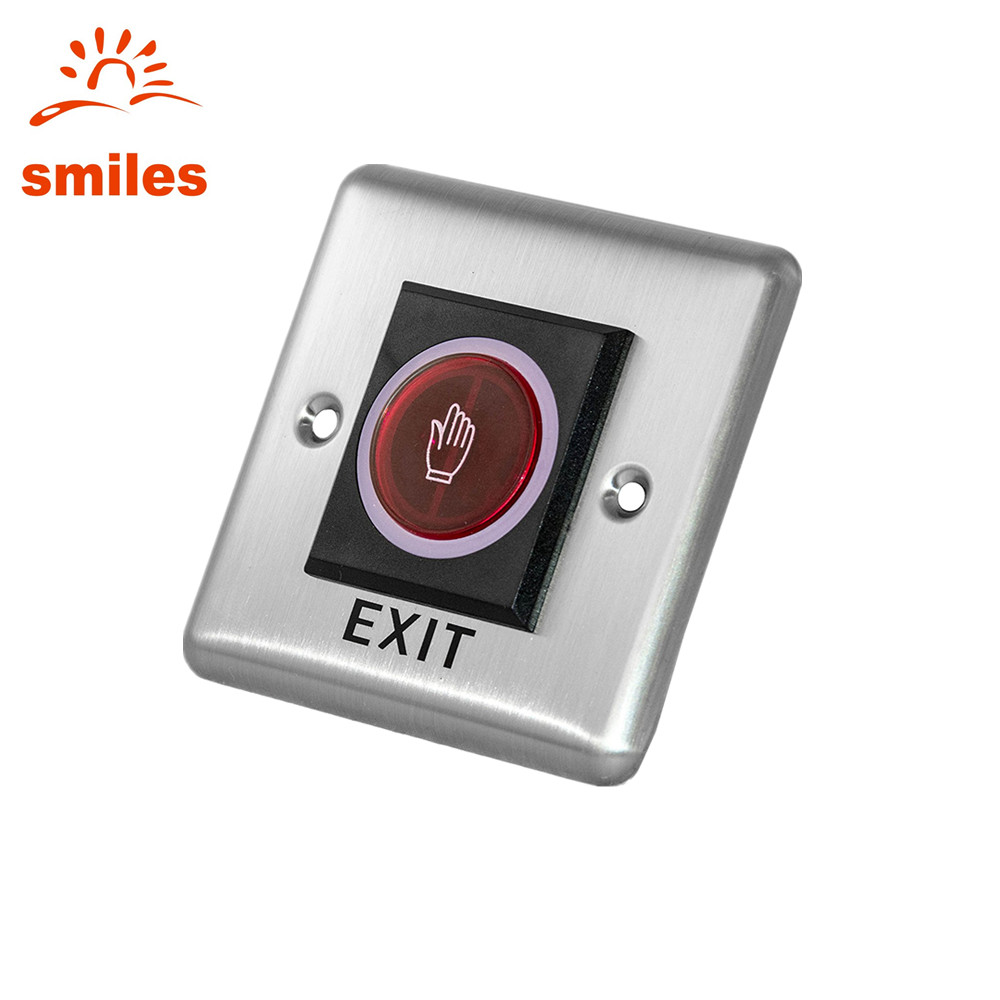

Square Type 12V No Touch IR Exit Switch Stainless Steel For Door Access

  • Model Number: EX002S
  • IP55
  • Max. Voltage: DC12V
  • Material: Stainless steel Plate
  • INQUIRY

Specification

Product Name: Stainless steel no touch exit button

Working voltage: DC 12V

Detection range: 0.1-10cm

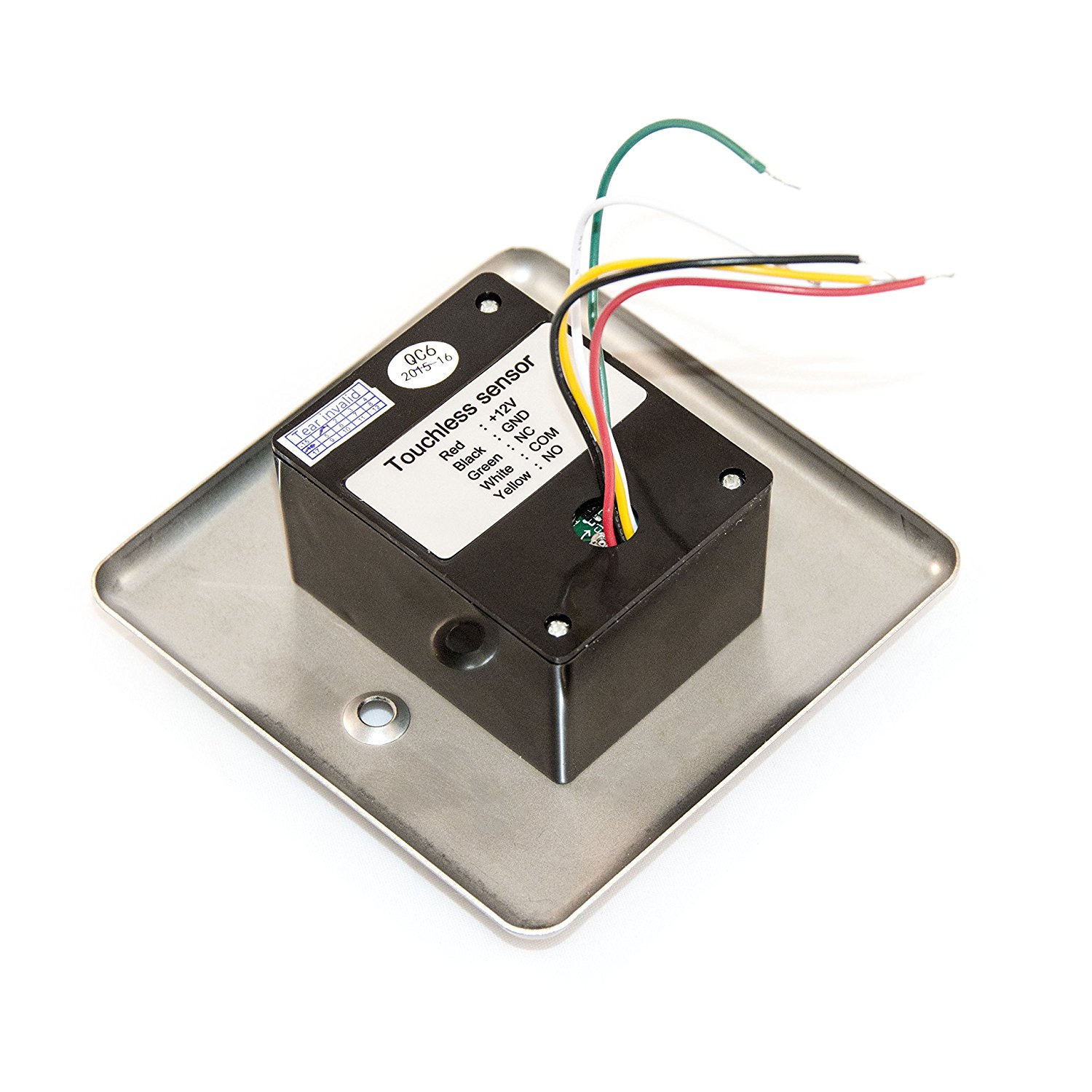

Output Contact: NO\NC\COM

Material: Durable stainless steel plate

Size: 86x86x39(mm)


Features

· No touch / Touch free Exit Sensor (Diffused Detection)


· Optical / Infrared Technology


· IP-55 Ingress Protection / SUS 304 Stainless steel Plate


· User friendly (Healthy protection)


· Free from contagious diseases spread


· Detection range: 0.1 ~ 10 cm


· Application: Gate/Door/Exit/Automation control


· High capacity of relay dry contact (3A/AC120V,DC30V)


· Normally open/Normally close/Common relay output


· Twin led indicators for sensor standby or approached :


(1) Sensor Standby: BLUE LED ON


(2) Visitors whom approached to the sensor in 10 cm : RED LED ON
