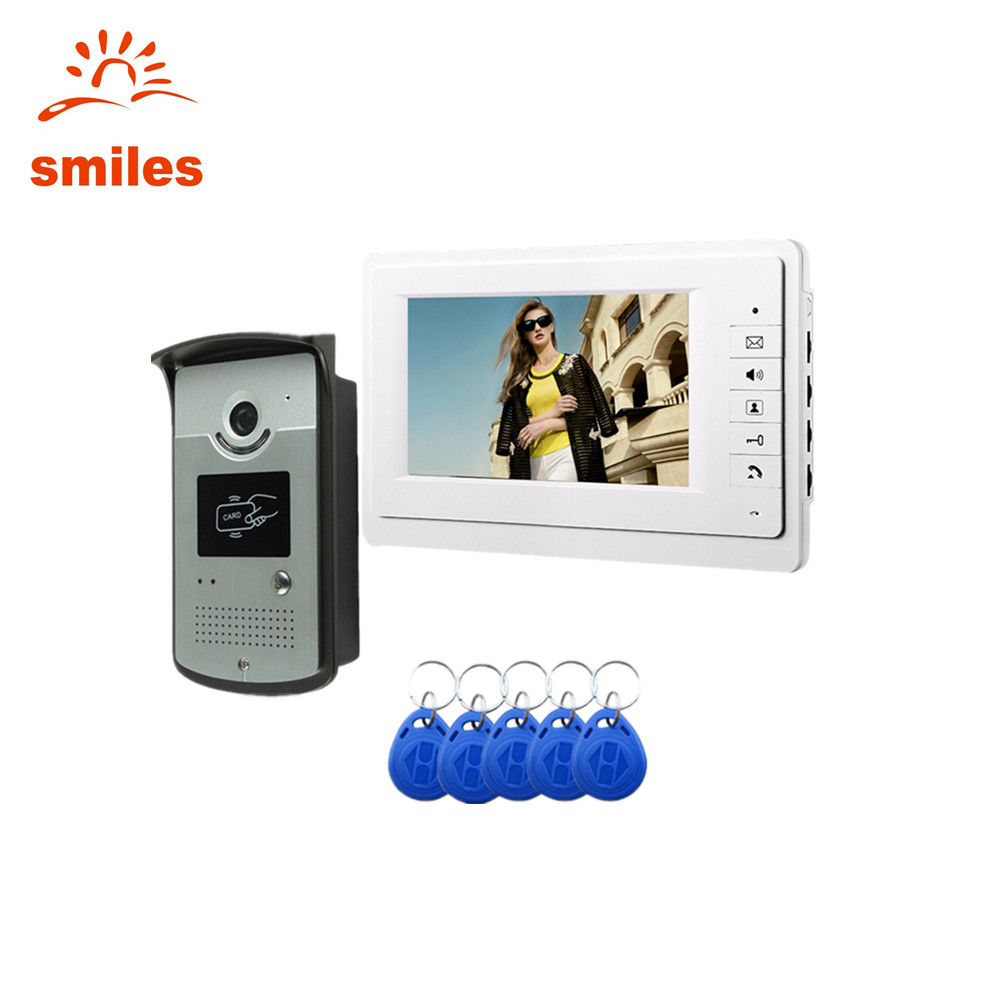

Video Doorbell Kits With RFID Card Reader Function

Specification

Product Name: 7” Color Wired Video Door Phone with Card Reader Function

Power: AC:100-240V/DC:15V1.2A

Screen: 7 inch digital screen

Installation mode: Wall-hung type

Camera viewing angle: 92 degrees

Infrared induction: Light sensor

Features

With monitoring, intercom, lock, bell, indoor intercom, volume, brightness, color adjustment function.

1. 7 inch TFT LCD, no radiation, low power consumption, wide screen high definition image.

2 .hands-free intercom function.

3. electric control unlocking function.

4. There is the function of monitoring the outdoor.

5. image brightness, chroma, ring volume, intercom volume can be adjusted.

6. anti alumina panel and wear-resistant surface treatment of the outdoor machine, camera HD 700 lines, no color.

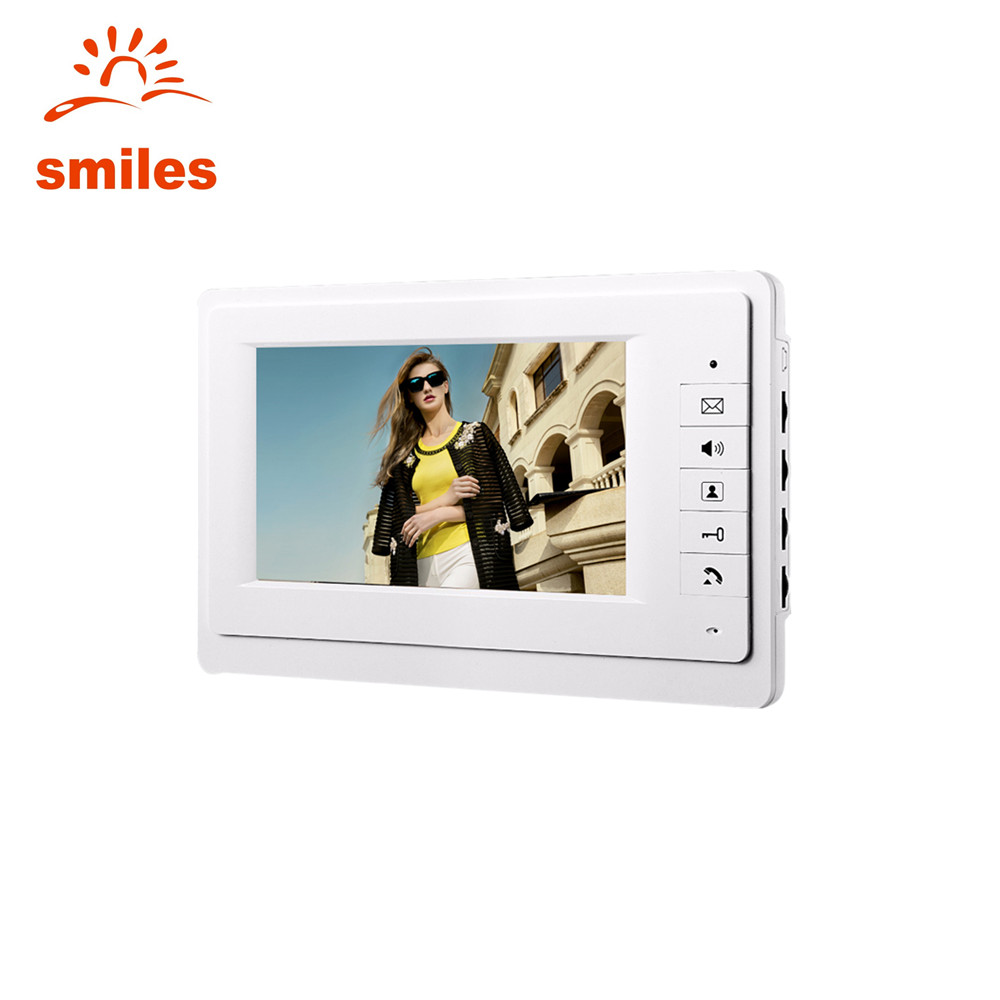

7. indoor machine ultra-thin aluminum panel design, beautiful and luxurious style.

8. 16 kinds of chords optional, will not always hear the monotonous door bell.

9. super waterproof, waterproof grade IP55, with night vision infrared function, wall mounted installation is simple and convenient.

10. credit card function, the maximum capacity of 500 Users ID card (comes standard with the increase of a card, remove a card, two user card, registered card two)

11. this product can be extended to a pair of two, six to three.

Performance parameter:

1.  switching power supply: DC15V 1.2A AC220V--50Hz

2. the whole machine current: less than 800mA

3. call delay time: 120S + 10%

4. monitoring delay time: 60S + 10%

5. camera sensor: 700 lines

6. lens: 3.6MM 92 degree

7. outdoor machine with infrared night vision function

8.  indoor machine size:250*150*26mm

9. outside the size of the machine: 155*100*35mm

10.  outdoor installation:265*180*105mm

Operation Instruction

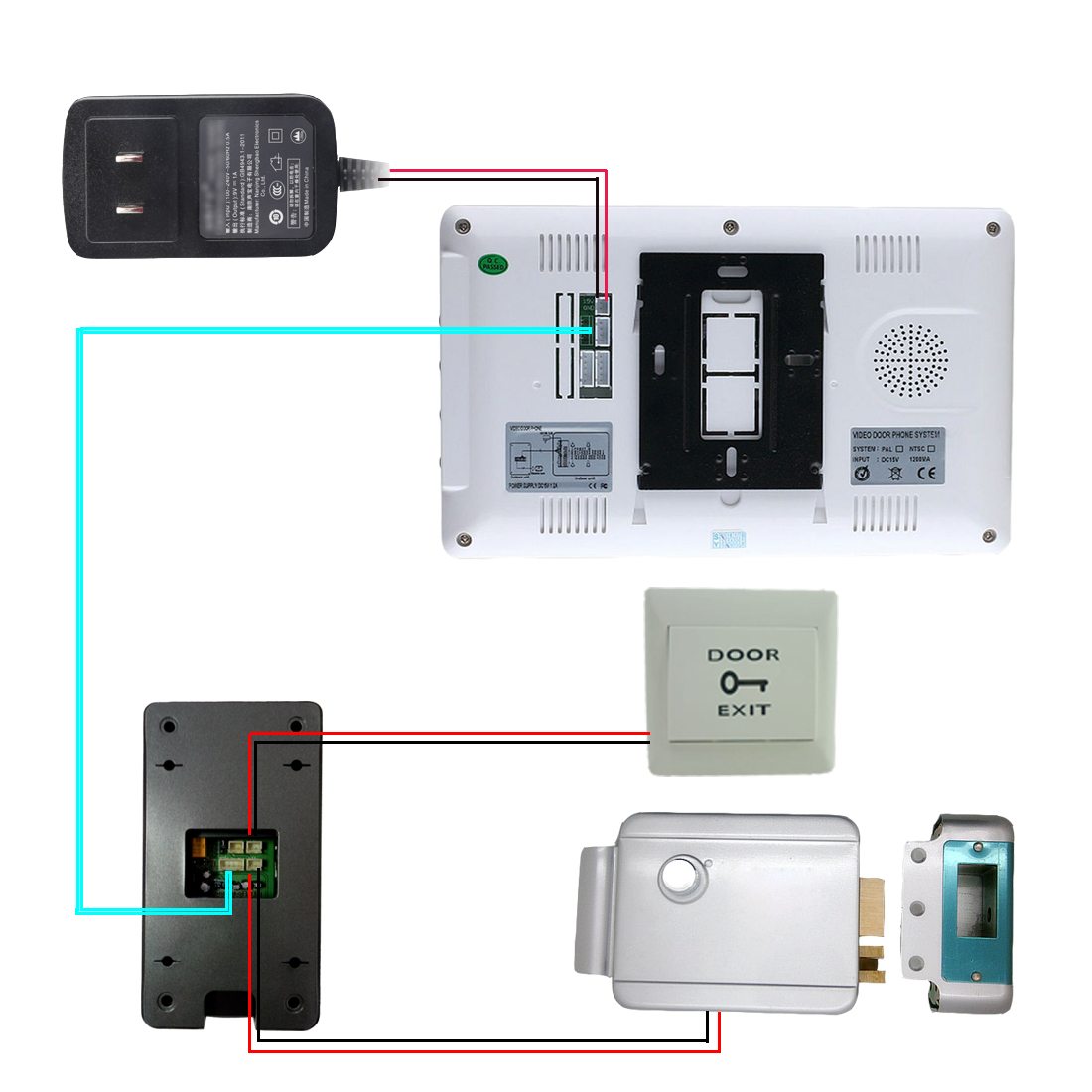

(1) Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.

(2) Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.

(3) Press the calling button, then the indoor monitor will hear the ringtones and show the image.

(4) Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).

(5) Press the talkback key and check whether indoor and outdoor talkback works normally.

(6) Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.

(7) For more than 2 indoor monitors, press the intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.

(8) Under the intercom mode, press the unlock button to check whether unlock works normally.

(9) You can safely use the product upon passed acceptance mentioned above.

Notices

(1) The machine should be placed on the place with solid, well-ventilated, dry and no direct sunlight, no strong magnetic fields and dust.

(2) Do not use chemical to clean the surface; clean, soft and dry cloth can be used to clean.

(3) Avoid to press multiple keys at the same time；

(4) Outdoor and indoor unit needs to match with specified models, and can not mix to use with other models or other company's product；

Do not open the machine without permission, please contact with your dealer or our technical department if you need any maintenance
