Fingerprint Access Control

  • Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller
  • Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller
  • Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller
  • Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller
  • Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller
Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote ControllerWaterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote ControllerWaterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote ControllerWaterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote ControllerWaterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller

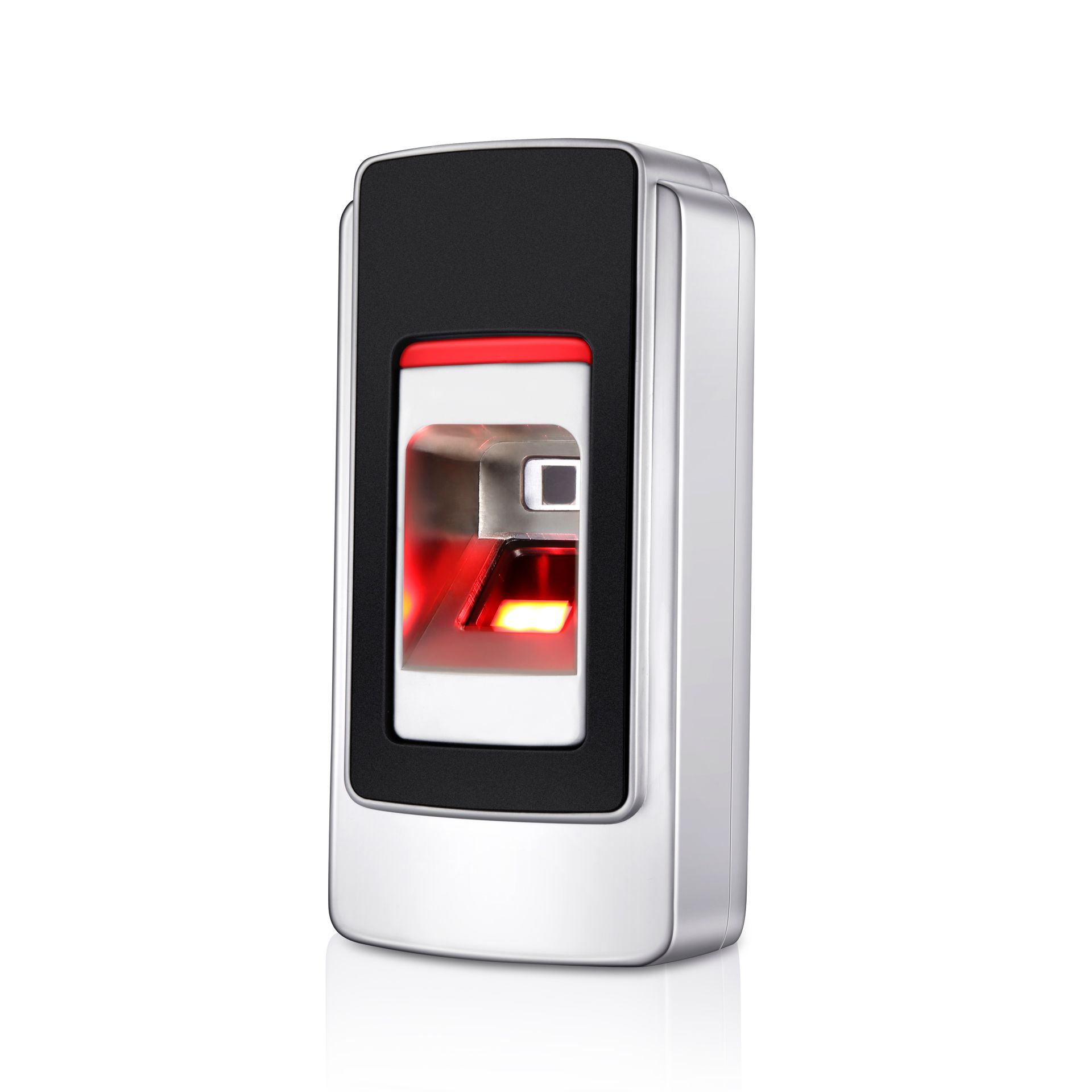

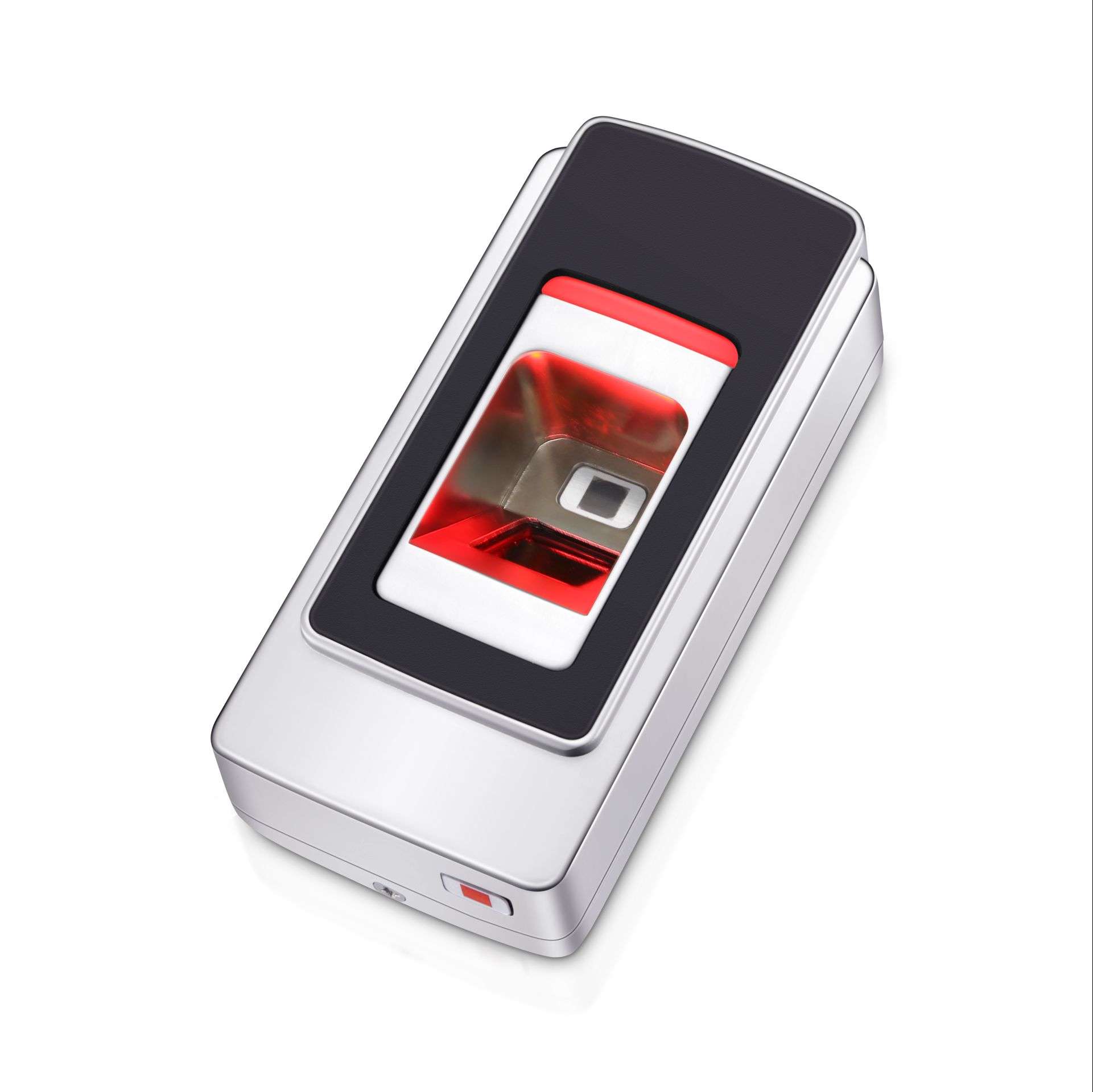

Waterprooof Fingerprint Access Control Machine Support EM Card Reader and Remote Controller

  • Model Number: F4
  • Material: Metal shell, Zinc Alloy
  • User Capacity: 700
  • Operation Voltage: DC+12V±10%
  • INQUIRY

Introduction



It supports fingerprints and EM RFID card. The performance has been


greatly improved.


The product uses the precise electron circuit and good productive technology,


which is the metal structure machine of fingerprint & card access. It is


widely used in business organization, office, factory, housing district etc.

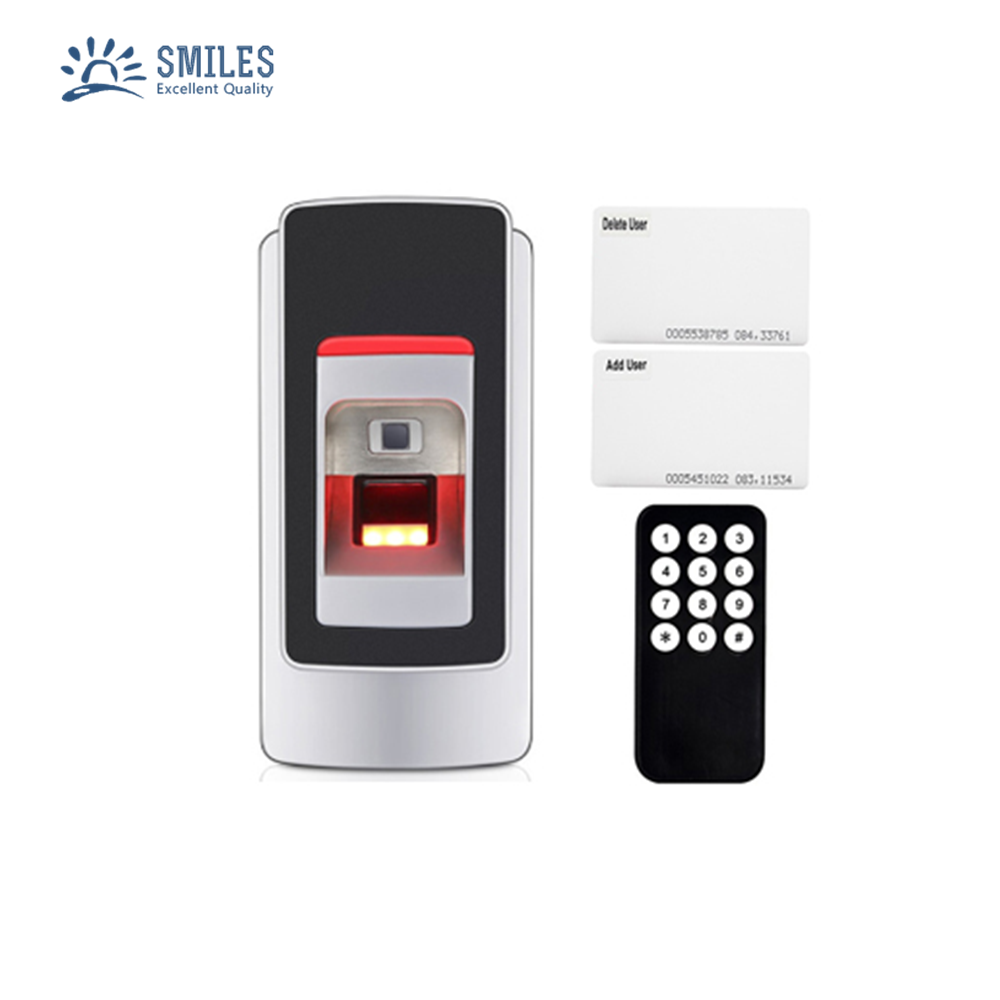

The product uses remote controller or Admin fingerprints for programming,

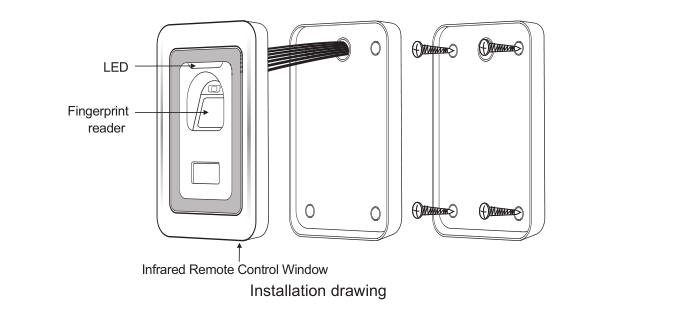

support fingerprints and EM 125Khz card, easy to install and program.




Features


Metal Shell: Durable, anti-vandal


Ultra-low Power Consumption: Long-lived, performance stable, standby current is less than 30mA


Touch Sensor activated: Fingerprint recognition is very fast


Capacity:  200 fingerprints & 500 cards (1000 fingerprints &2000 cards can be selected)


Used as a Card Reader: Can be used as a card reader with Wiegand26 output


Used as a Standalone Access Control: Can connect external EM/Mifare/HID wiegand26 card reader


Specification


Operation Voltage: DC+12V±10%


Idle Current:≤20mA


Standby Current: ≤80mA


Card Reading Distance: ≥2cm


Operating Temperature: -20~+50℃


Operating Humidity: 20%RH-95%RH


Resolution: 450 DPI


Fingerprint Input Time: <1S


Identification Time: <1S


FAR: <0.0198%


FRR: <0.0000256%


Structure:  Zinc Alloy
