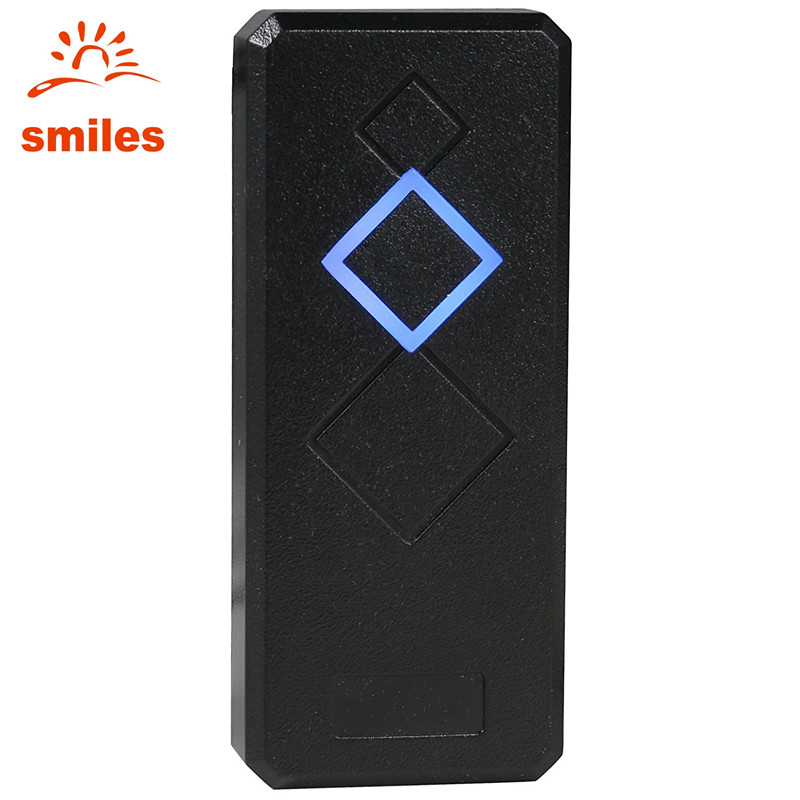

Wiegand RFID Card Reader For Door Access Control System

  • Model Number: CR07
  • Output Format: Wiegand26/34,RS485
  • Voltage: DC9-12V
  • Frequency: 125KHz or 13.56mhz
  • INQUIRY

Product Descripition


Specification

Product Name: Contactless Rfid Card Reader

Card Type: EM-ID Card/13.56mhz IC Card

Mainly used: Door Access Control

Voltage: DC 9V-12V

Reading distance: 3-15cm

Size: 102mmx43mmx16mm


Features:


1. Reading distance: 3-15cm


2. Output Interface: Standard Wiegand26, Optional wiegand34 or RS232/485


3. Operating Frequency: 125khz or 13.56MHz


4. LED Built-in LED (Double Color LED)


5. Buzzer Built-in Loud Speaker


6. Color: Black/White


7. Static Power Supply:  50~70mA


8. Temperature:  -20°C~60°C


9. Relative Humidity: 10%-90%


10. Recognition Speed <=5s


11. Dimension:  102mmx43mmx16mm
