Slim Metal Waterproof RFID Access Control Support Wiegand Input Output

INTRODUCTION

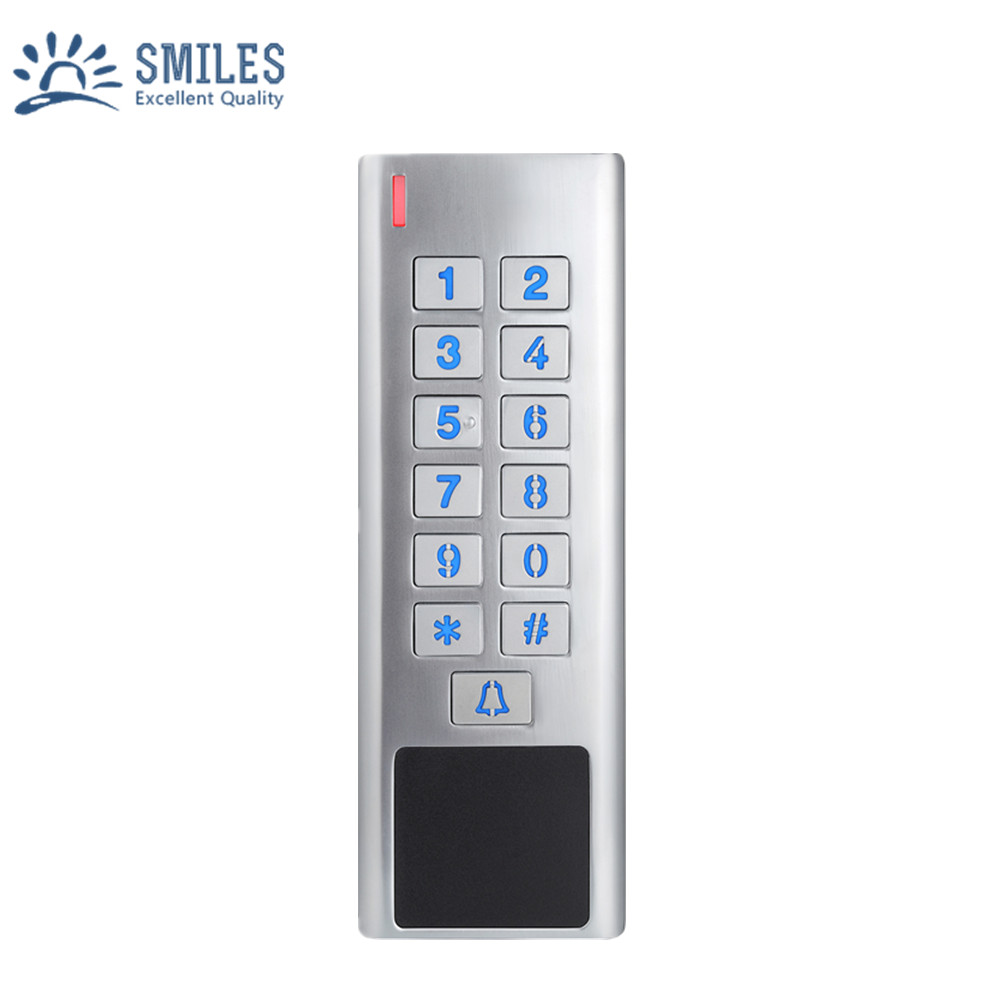

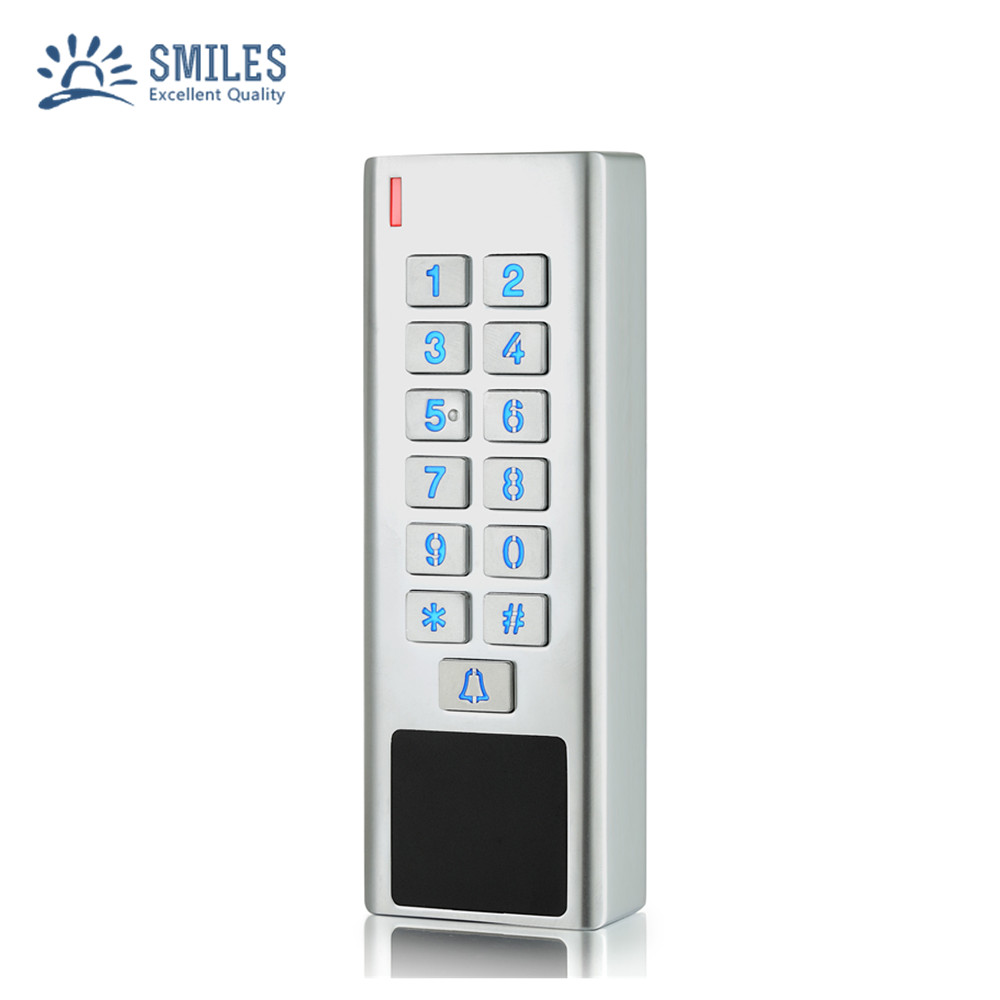

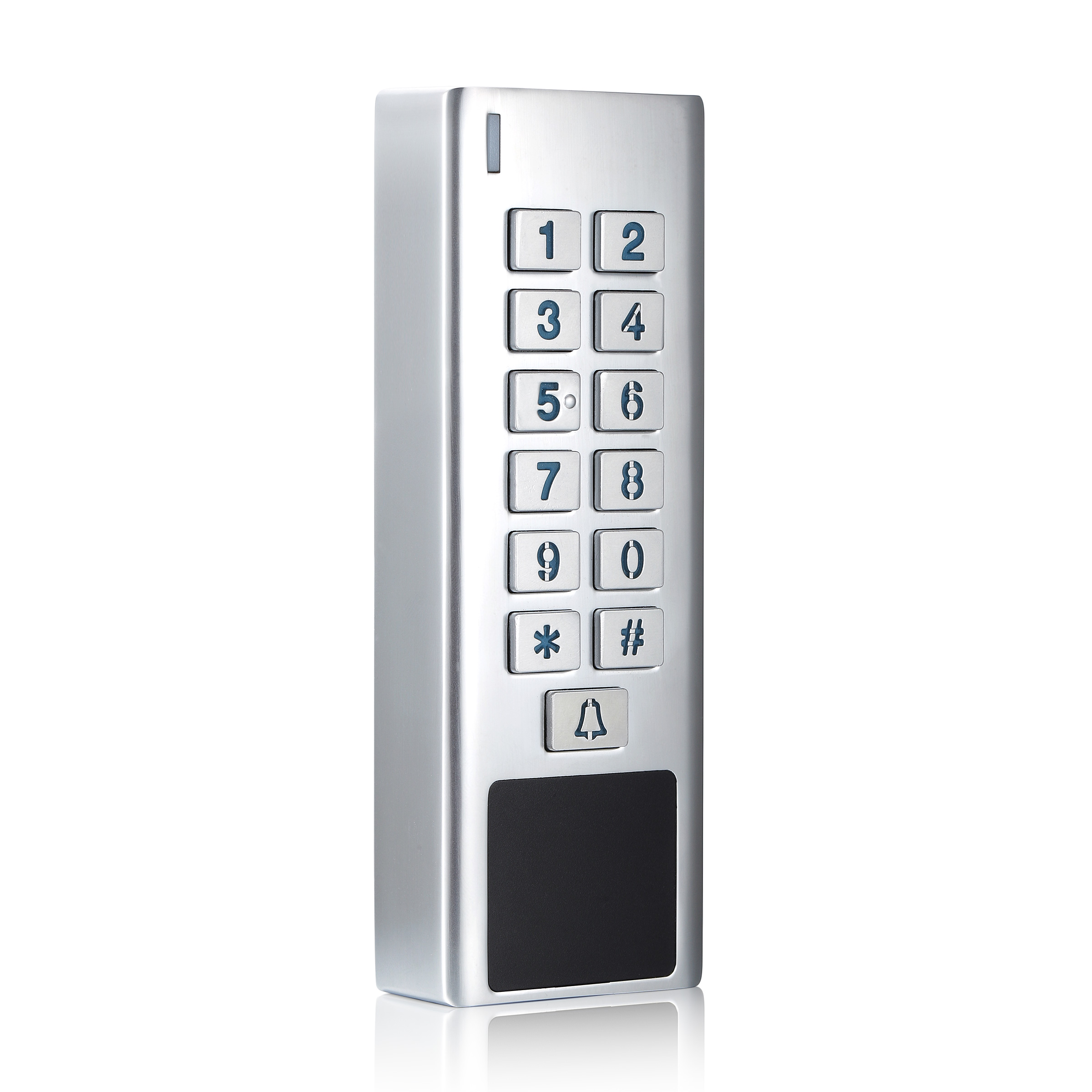

A8 iswaterproof metal keypad Access Control/Wiegand Reader for single door. It adopts Atmel MCU, which ensure stable performance. Multi-format Wiegand input &output, supporting Keypad, ID, HID, IC cards. User capacity is 2000, PIN is 4-6 digits.

It is equipped with an Admin cards, which can add / delete users quickly and have the functions of anti-duress, anti- passback function, and backlit of keyboard.

Features

Wide voltage input: AC/DC 10-30V

Ani-duress, Anti-passback for single door

Waterproof, conforms to IP67

Wiegand 26-37 bits input & output

Access by multiple cards/PINs

Can be installed on 86 type box (WMK1)

Keypad output:4 bits, 8 bits, 10 digits virtual number

Pulse Mode, Toggle Mode

Power supply: 10-30V AC/DC

Idle Current: ≤45mA

Active Current:  ≤80mA

Waterproof:  IP67

User Capacity:   2000

Card type:  ID, IC, ID + IC(WMK2), HID customized

Frequency:  EM & HID: 125KHz, Mifare: 13.56MHz

Wiegand Card: 26-37 bits, PIN: 4bits, 8bits(ASCII), 10 digits Virtual Number

Lock Output Load ≤2A

Alarm Output Load ≤2A

Operating Temperature: -40°C~+70°C,(-40°F~158°F)

Operating Humidity:  0~98%RH

Dimensions: 129*44*20mm(slim)

Unit Weight: 410g
