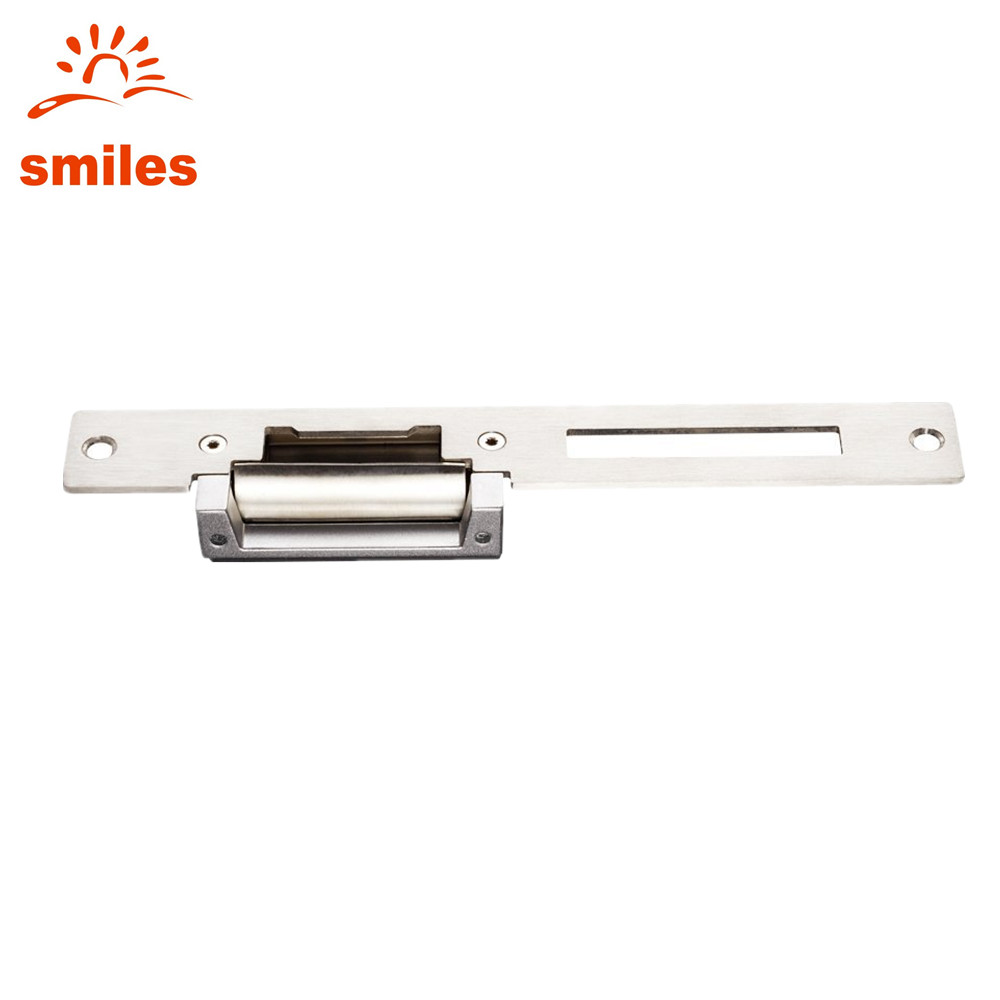

NO NC 12V Long Type Electric Strike Lock

Product Descripition

Specification

Product Name: Electric Strike Door Lock

Operating Modes: NC Fail Safe or NO Fail Secure

Voltage: DC 12V

Current: 200mA ~ 450mA

Suitable for: wooden door, metal door, PVC door

Size: 250 (L) x 31 (W) x 25 (H) mm

Features

Holding Force: 500kg

Fail secure/Fail Safe

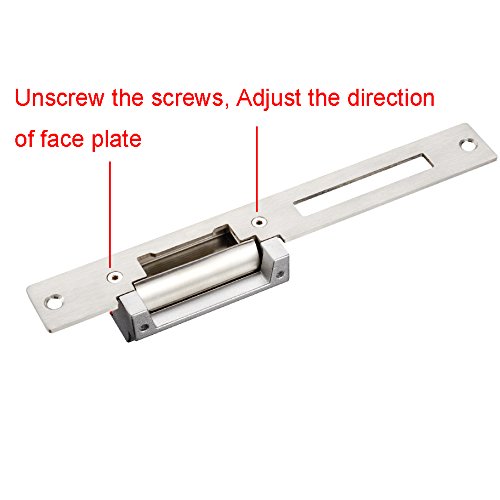

Special design,easy to adjust the distance of the Lock-tongue

Designed for Metal Frame drill a hole,then install it directly

Testing to 1000000 cycles

High-Temperature Painted,Duable and Beatiful Artical

Lock Size: 250Lx43.5Wx32.5H(mm)

Strike Structure: Stainless Steel

Holding Force: 500kg

Voltage: DC12V

Current: 220mA

Suitable For: Wooden Door,Metal Door,PVC Door

Surface Temperature: Within +20C

Suitable Temperature: -10~+55C(14-131F)

Operating Humidity: 0-90%(non-condensing)

Face plate Housing: Painted Steel

Function: Built-out MOV

Weight: 0.42kg
