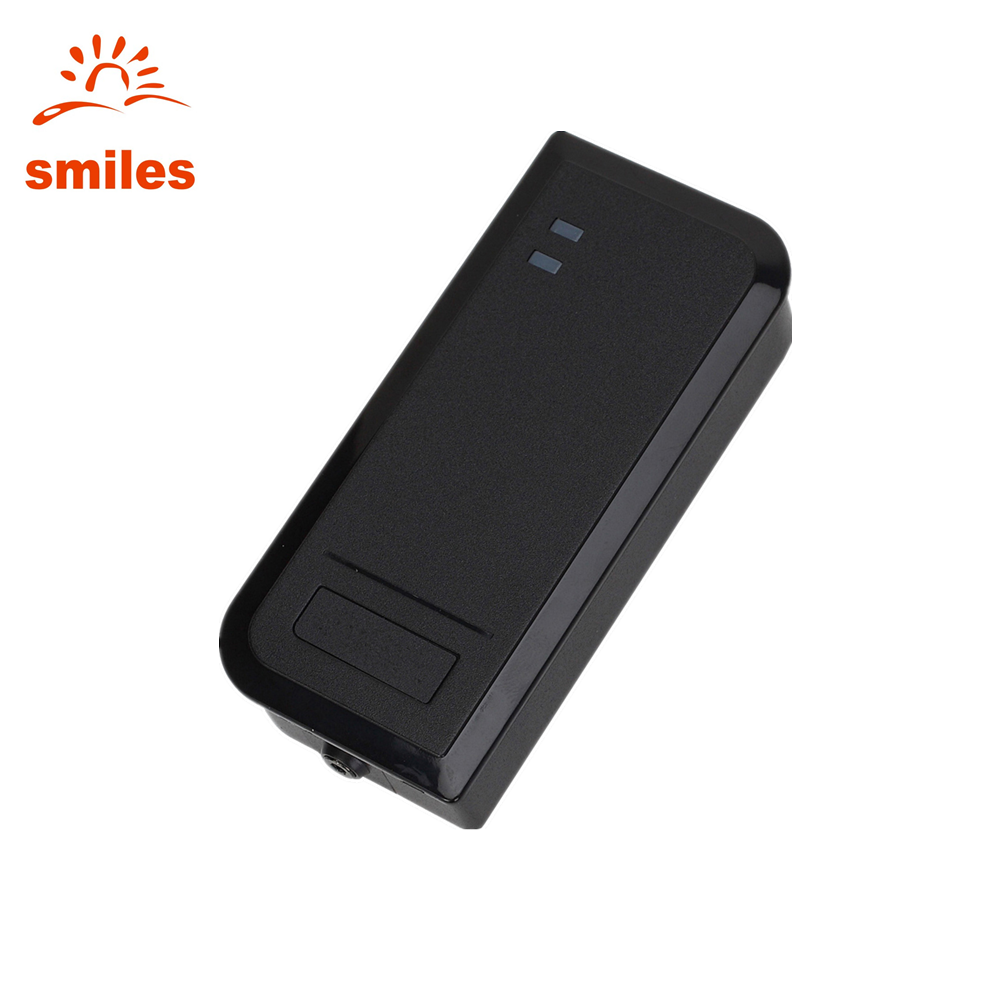

IP66 Waterproof Proximity Entry Stand-alone Access Control

  • Model Number: S003
  • User Capacity Card 2000 EM card & HID card
  • Wiring Connections Relay Output, Exit Button
  • Waterproof degree IP66
  • INQUIRY

Product Descripition


Specification

Product Name: Proximity Entry Stand-alone Access Control

User Capacity Card: 2000 EM card & HID card

Wiring Connections: Relay Output, Exit Button

Waterproof degree: IP66

Relay: NO, NC, Common

Operating Temperature: -40℃ ~60℃


Features


Waterproof, conform to IP66


Read 125KHz EM&HID card


One programmable relay operation


Pulse mode, Latch mode

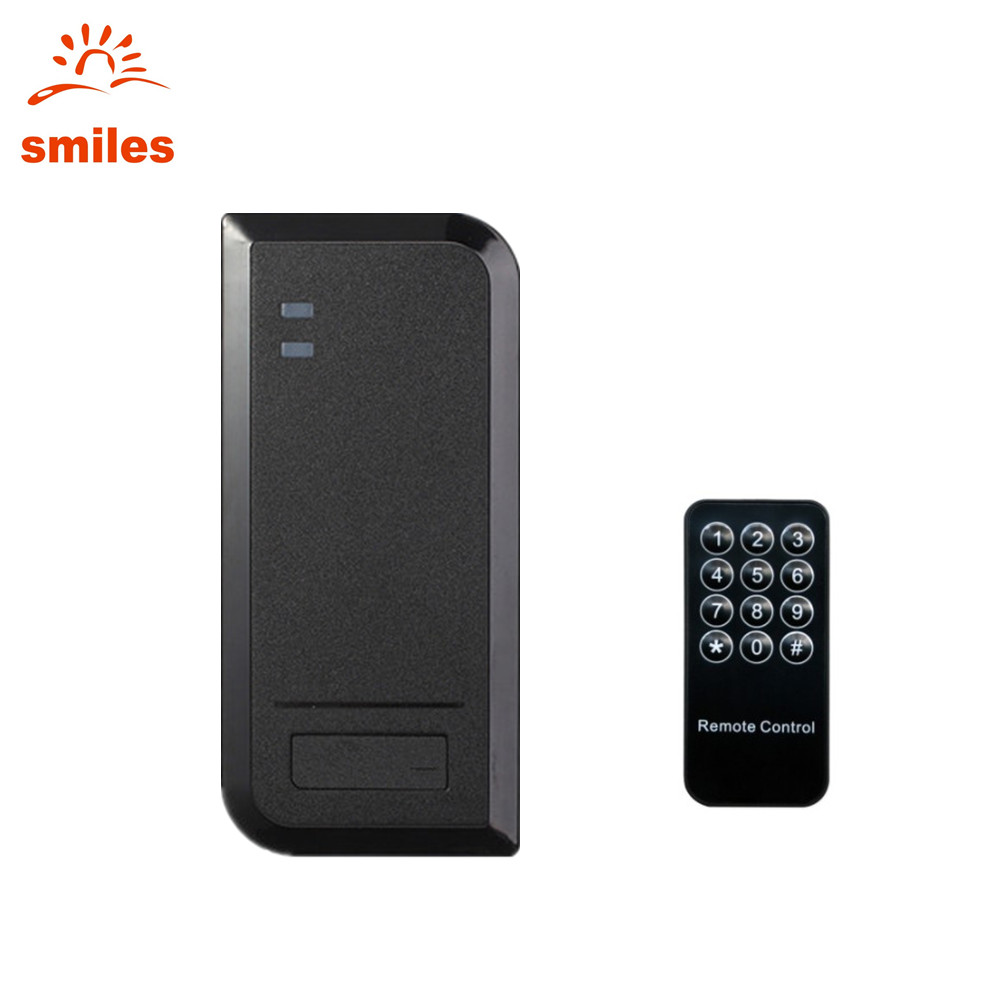

Remote infrared programmer


2000 users


Card block enrolment


Tri-colour LED status display


Built in light dependent resistor (LDR) for anti tamper


Buzzer for audible or silent mode


Low temperature resistance(-40℃)



Wiring


Colour Function Notes


Red Power + 9~18 Votes DC Regulated Power Input


Black GND Ground


White NO Normally Open Relay Output


Brown COM Common Connection for Relay Output


Green NC Normally closed Relay Output


Yellow OPEN Request to Exit input(REX)




Installation

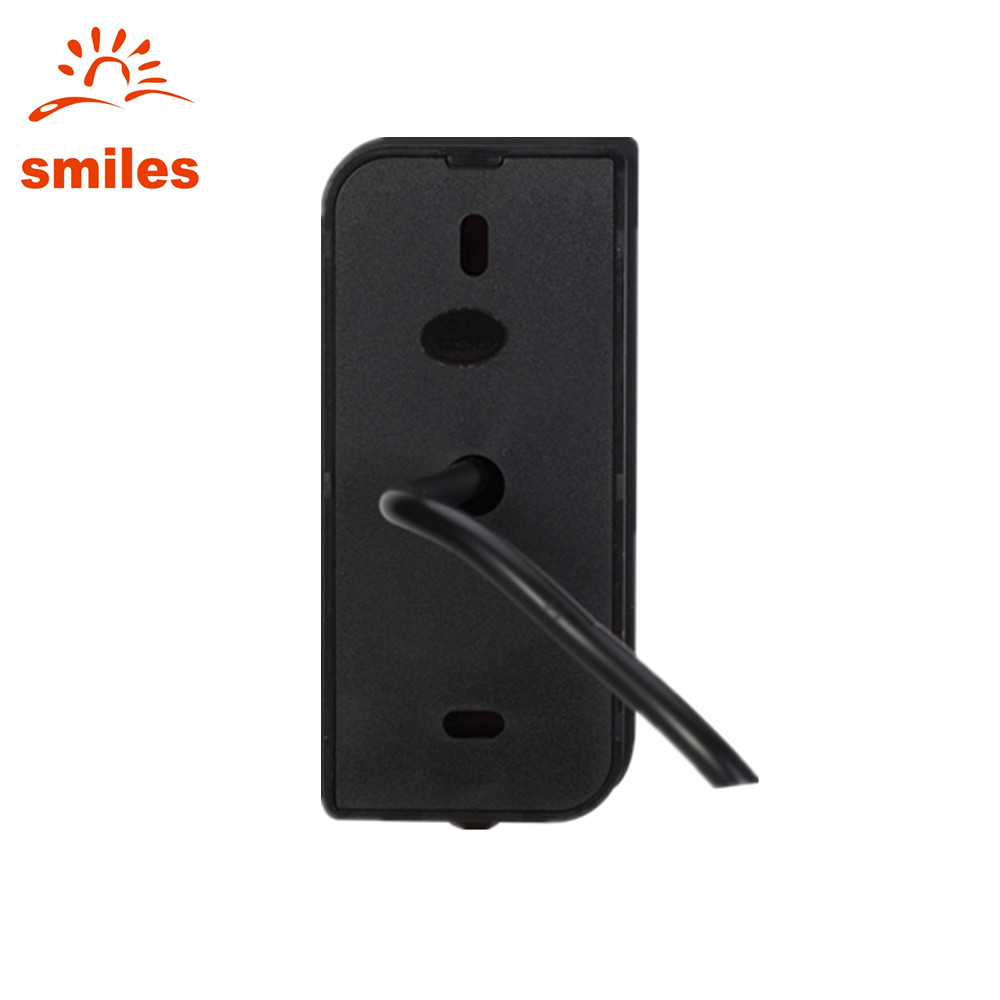

Remove the back cover from the unit


Drill 2 holes(A,C) on the wall for the screws and one hole for the cable


Knock the supplied rubber bungs to the screw holes(A,C)


Fix the back cover firmly on the wall with 4 flat head screws


Thread the cable through the cable hole(B)


Attach the unit to the back cover
