Luxury 7 Inch Touch Screen LCD Video Door Phone Doorbell Intercom System For Villa

Specification

Product Name: 7” Color Wired Video Door Phone

Power: AC:100-240V/DC:15V1.2A

Screen: 7 inch digital screen

Installation mode: Wall-hung type

Camera viewing angle: 92 degrees

Infrared induction: Light sensor

Features

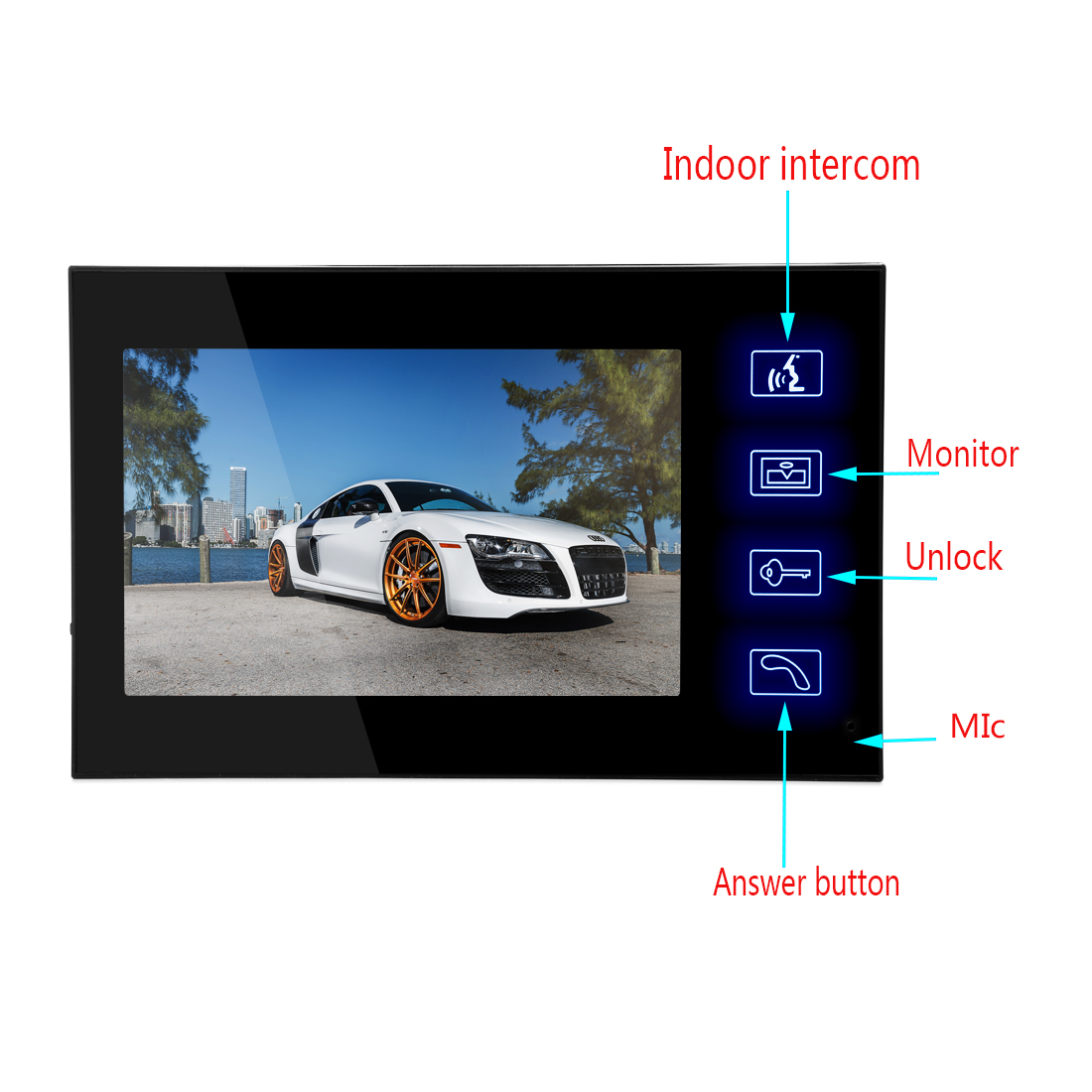

Ultra-thin design indoor unit, fashionable and luxury.Touch button design；

7" TFT LCD screen with no radiation, low power consumption and high definition.

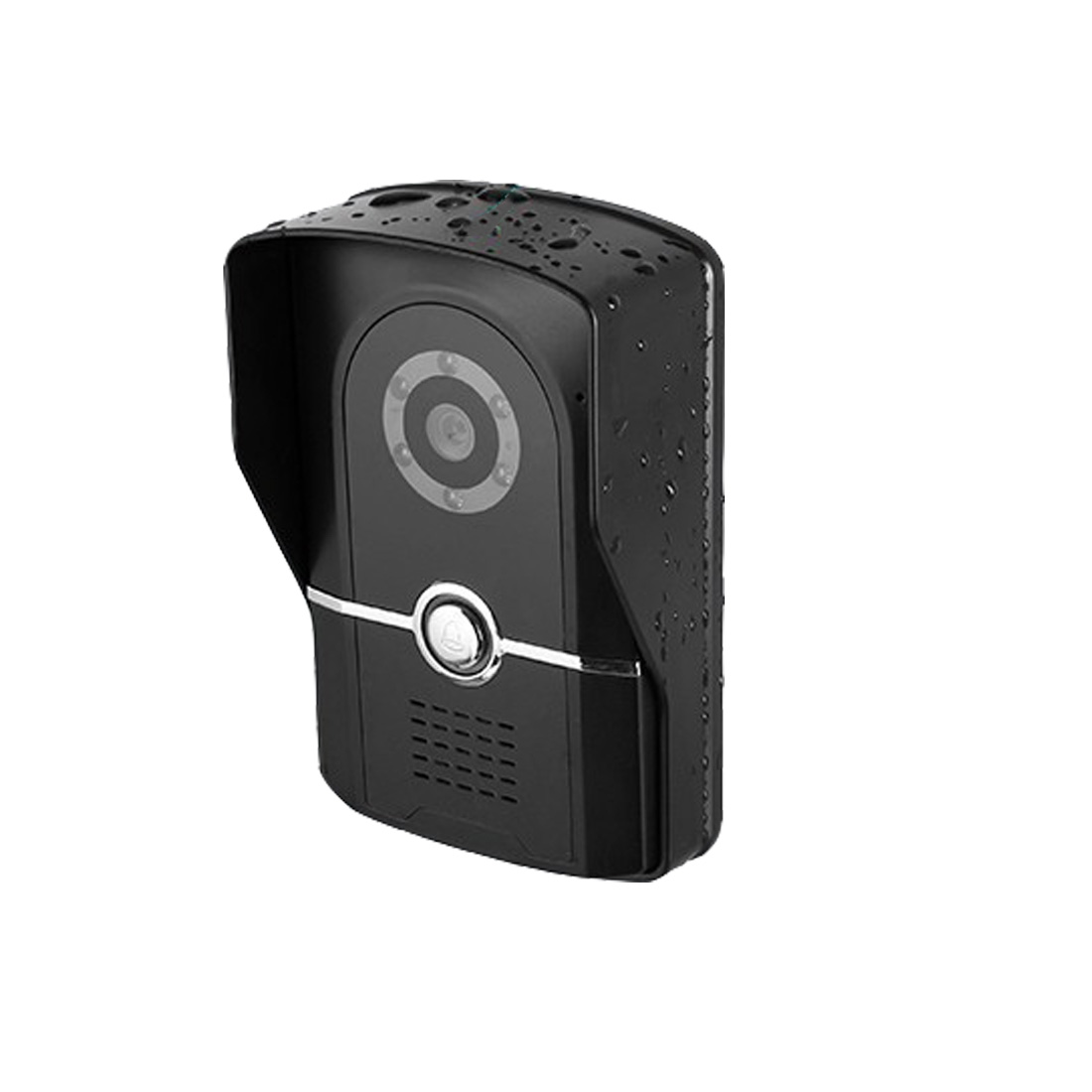

IR Camera with Night Vision.

Electric lock-control function.

Hand-free intercom function.

Mute indoor intercom function.

Monitoring the outside of the door.

16 kinds of doorbell rings.

Volume, brightness and contrast adjustable.

The camera could be high definition

monitor, intercom, unlock, wireless control, code unlock., hand free, monitors talks to monitor

Suitable most of the electronics lock, with delay unlocks functions

Easy installation by yourself with adapter and cable we provided in this kit.

Operation Instruction

(1) Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.

(2) Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.

(3) Press the calling button, then the indoor monitor will hear the ringtones and show the image.

(4) Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).

(5) Press the talkback key and check whether indoor and outdoor talkback works normally.

(6) Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.

(7) For more than 2 indoor monitors, press the intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.

(8) Under the intercom mode, press the unlock button to check whether unlock works normally.

(9) You can safely use the product upon passed acceptance mentioned above.

Notices

(1) The machine should be placed on the place with solid, well-ventilated, dry and no direct sunlight, no strong magnetic fields and dust.

(2) Do not use chemical to clean the surface; clean, soft and dry cloth can be used to clean.

(3) Avoid to press multiple keys at the same time；

(4) Outdoor and indoor unit needs to match with specified models, and can not mix to use with other models or other company's product；

Do not open the machine without permission, please contact with your dealer or our technical department if you need any maintenance
