Electric Magnetic Door Lock
12V/24V 800LBS EM Lock/350KG Electromagnetic Lock for Single Door

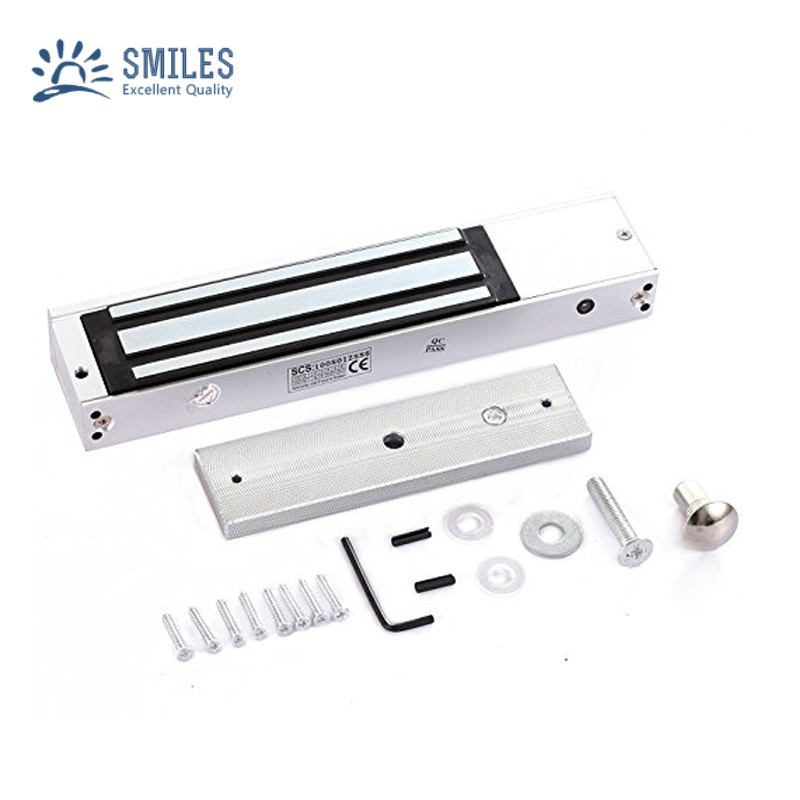

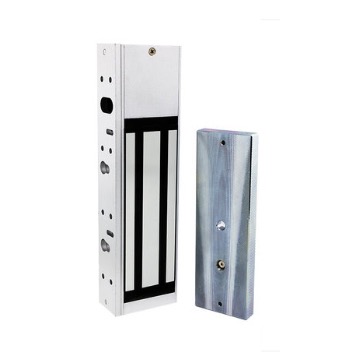

- Product Name: Single Door 800LBS Magnetic Lock
- Holding Force: 350KG(800LBS)
- Input Voltage: DC12V/DC24V

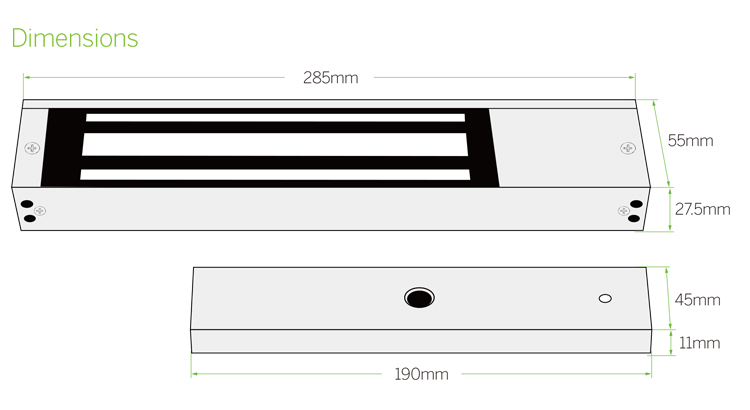

- Size: 285Lx55Wx27.5H(mm)
Features
Product Name: Single Door 800LBS Magnetic Lock
Size: 285Lx55Wx27.5H(mm)
Armature Plate Dimension: 190Lx45Wx11H(mm)
Holding Force: 350KG(800LBS)
Input Voltage: DC12V/ DC24V
Current: 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Operating Temp: -20℃~+55℃(-4—131°F)
Humidity: 0~90%(non-condensing)
