No touch exit button

  • No touch exit button with time adjustable
  • No touch exit button with time adjustable
  • No touch exit button with time adjustable
  • No touch exit button with time adjustable
  • No touch exit button with time adjustable
No touch exit button with time adjustableNo touch exit button with time adjustableNo touch exit button with time adjustableNo touch exit button with time adjustableNo touch exit button with time adjustable

No touch exit button with time adjustable

  • Model Number: EX50SS
  • Material: 1.7mm Thick 304 Stainless steel
  • Contact Rating:12-24V,3A
  • Output: NO/NC/COM/+12/GND
  • INQUIRY

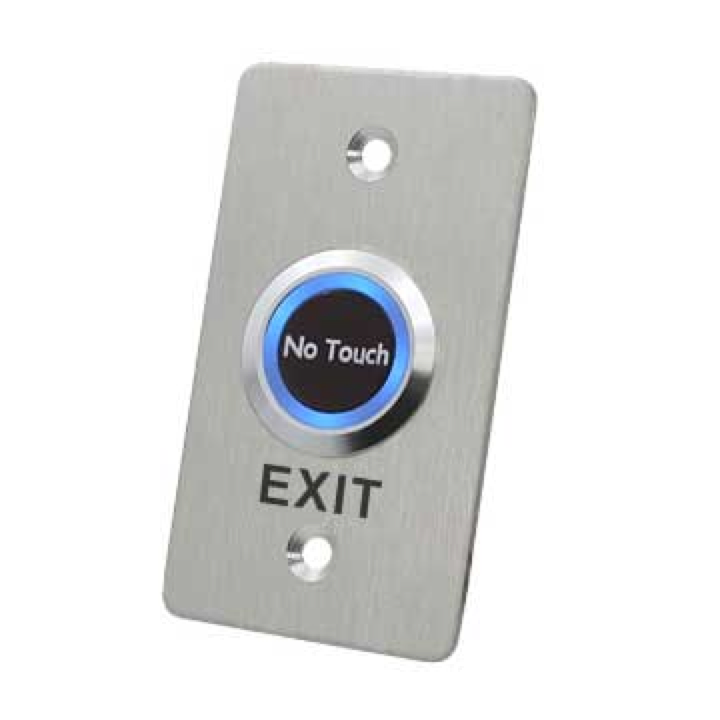

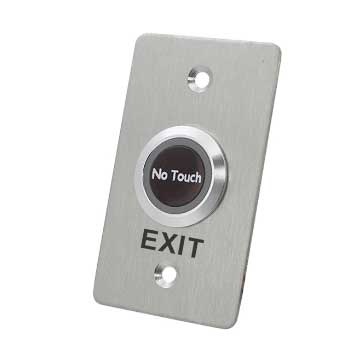

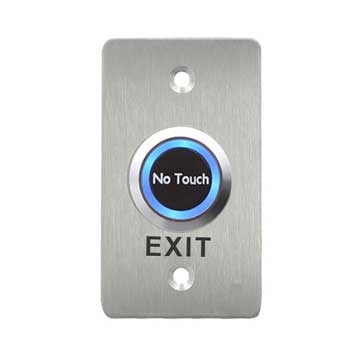

Product Name: Infrared Sensor Exit Button

Material:  1.7mm Thick 304 Stainless steel

Dimensions:  86Lx50Wx25H(mm)

Contact Rating: 12-24V,3A

Power:  12VDC & 24VDC

Sensor distance:  5-10CM

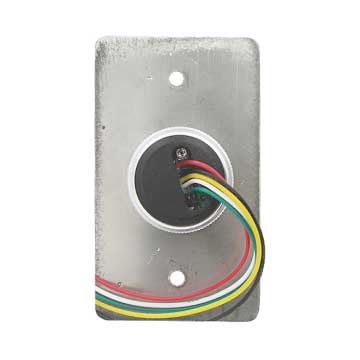

Output:  NO/NC/COM/+12/GND

Mechanical Life:  500,000 Tested

Operating Temp:  -20℃~+55℃(14-131F)

Operating Humidity:  0-95%(relative humidity)

LED Indicator:  Blue LED Indicator (Standby), Green LED Indicator (Sensation)

Suitable for Door:  Hollow Door

Unit Weight:  0.1kg

Standard Package:  100PCS/carton

Carton Weight:  11KG

Carton Size:  51*45*24cm
