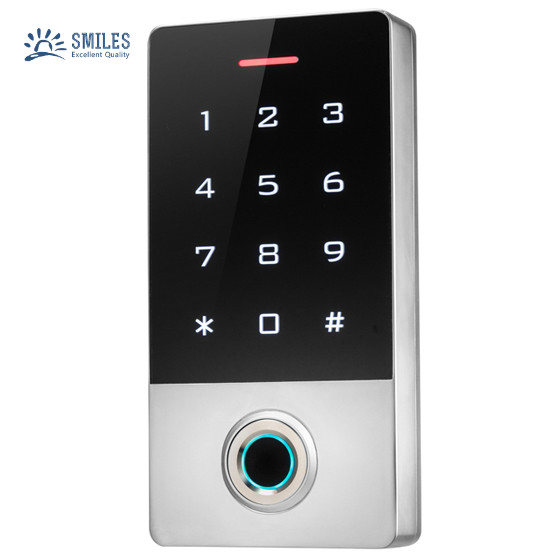

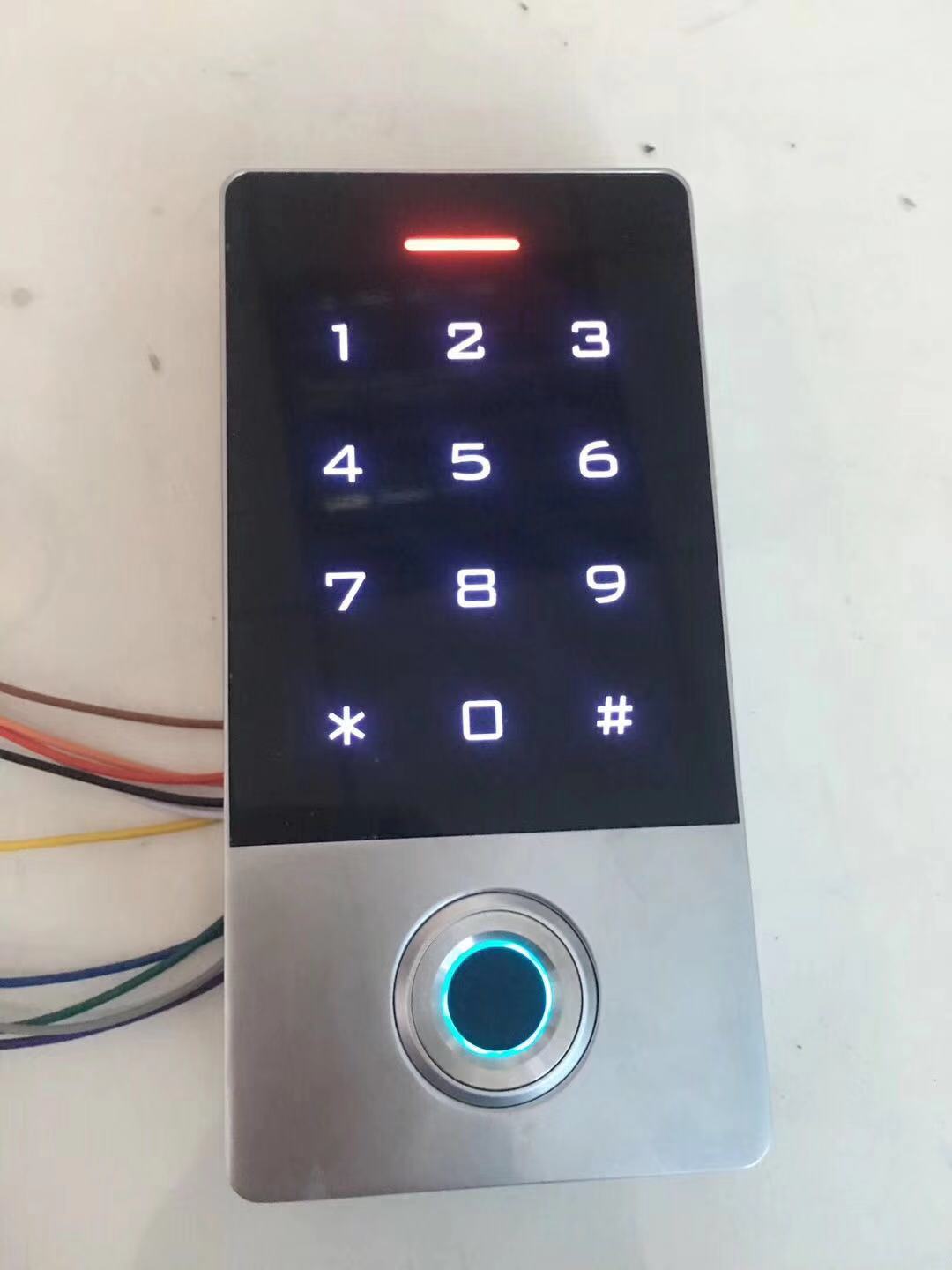

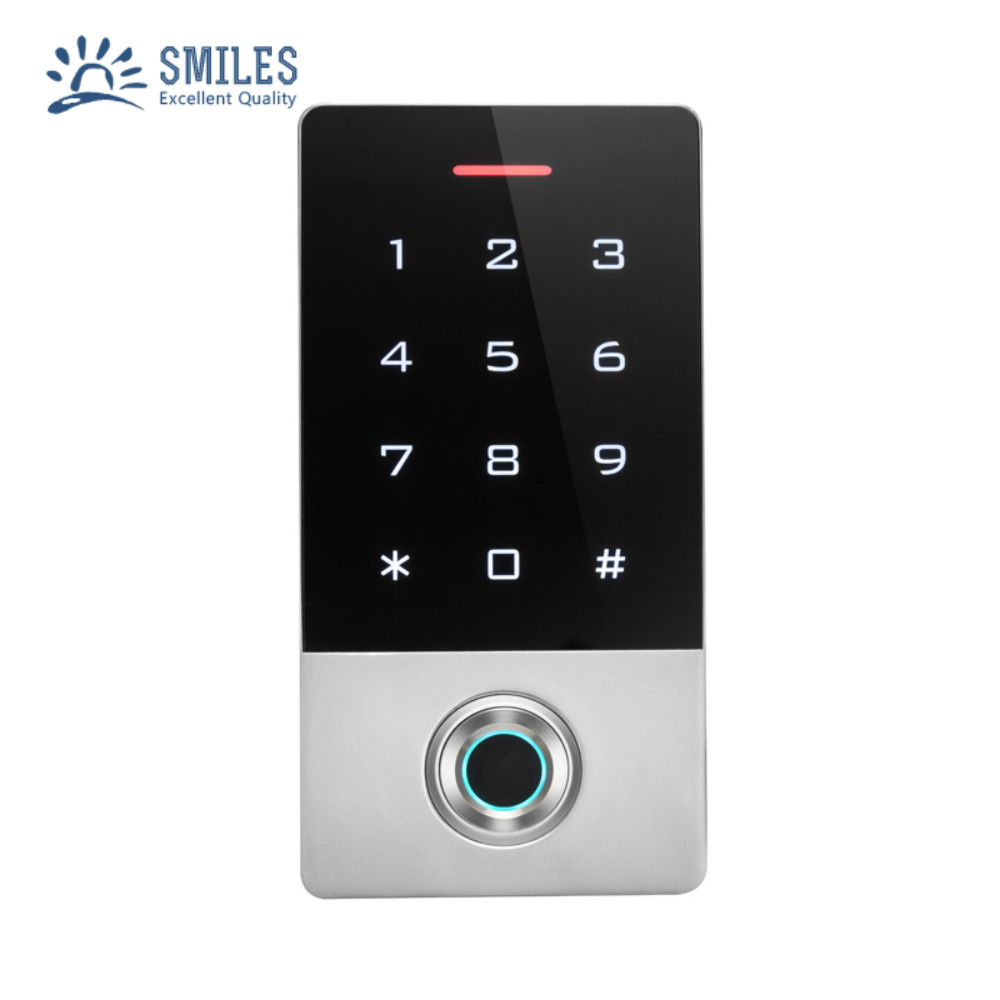

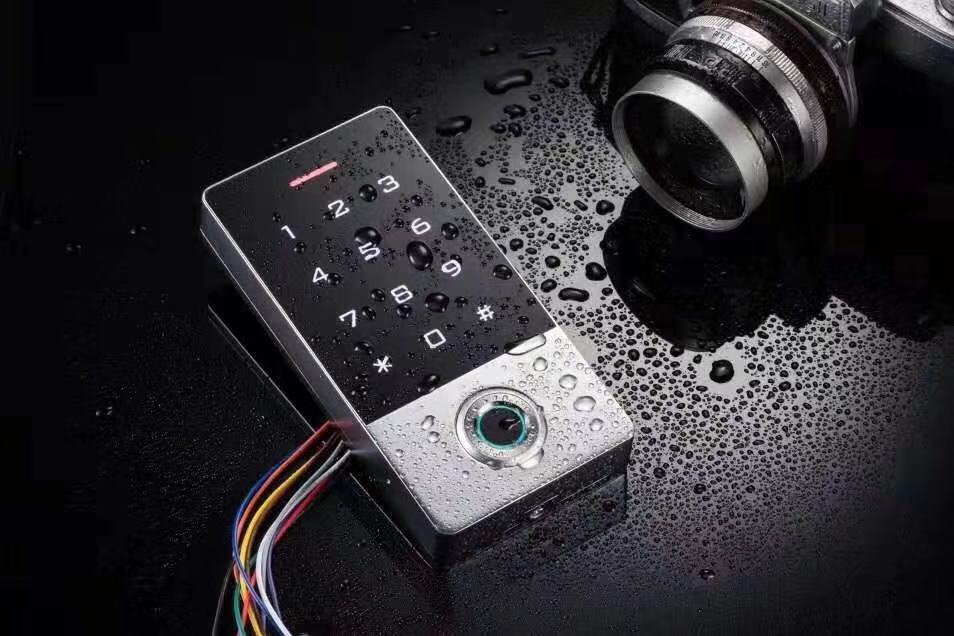

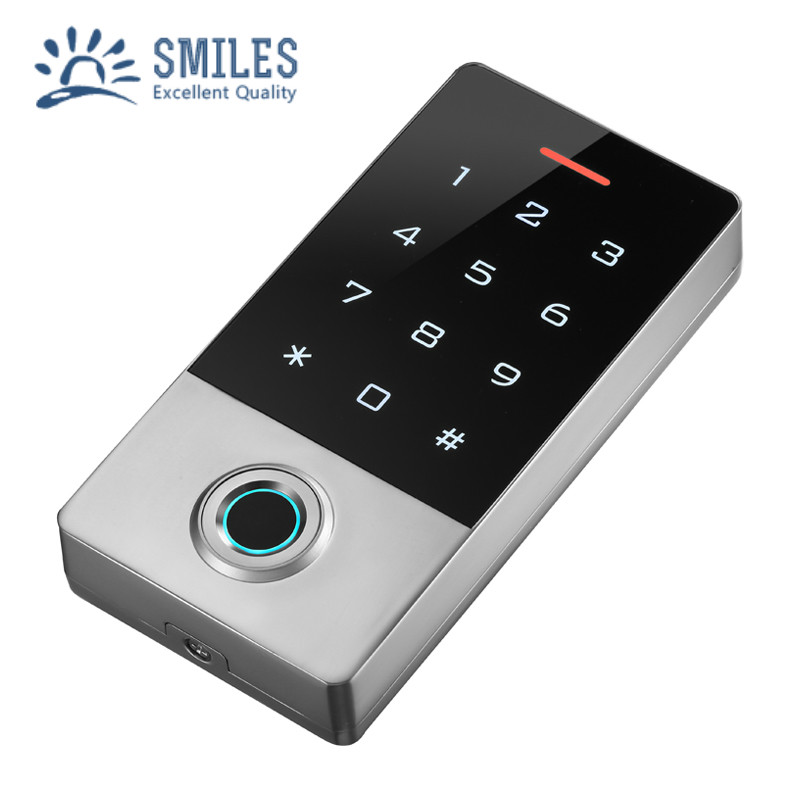

10000 Users IP68 Waterproof Fingerprint Access Control support RFID Card Reader and Password Functions

Introduction

This series of product is a new generation of multi-function standalone Access Control . It adopts new ARM core 32-bit

microprocessor design,which is powerful ,stable and reliable. It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions ,such as offices,residential communities, villa, bank and prison etc.

Features

1. Read 125KHz EM Card and HID Card (Optional)

2. Read 13.56MHz Mifare card and CPU card (Optional)

3. Mental backlight keypad

4. Contains card reader mode. The transmission format could be adjusted by user.

5. Supports different access ways: Entry by Card +Code or Entry by multi cards

6. Support master added card and deleted card

6. User capacity: 10,000 users

Technical Specifications

1. Operating Voltage: DC 12-24V

2. Standby Current: ≤35mA

3. Operation Current: ≤100mA

4. Operating Temperature: -40°C~60°C

5. Operating Humidity: 0%~95%

6. Access ways: Fingerprint, card, code, or multiple combination method to access
