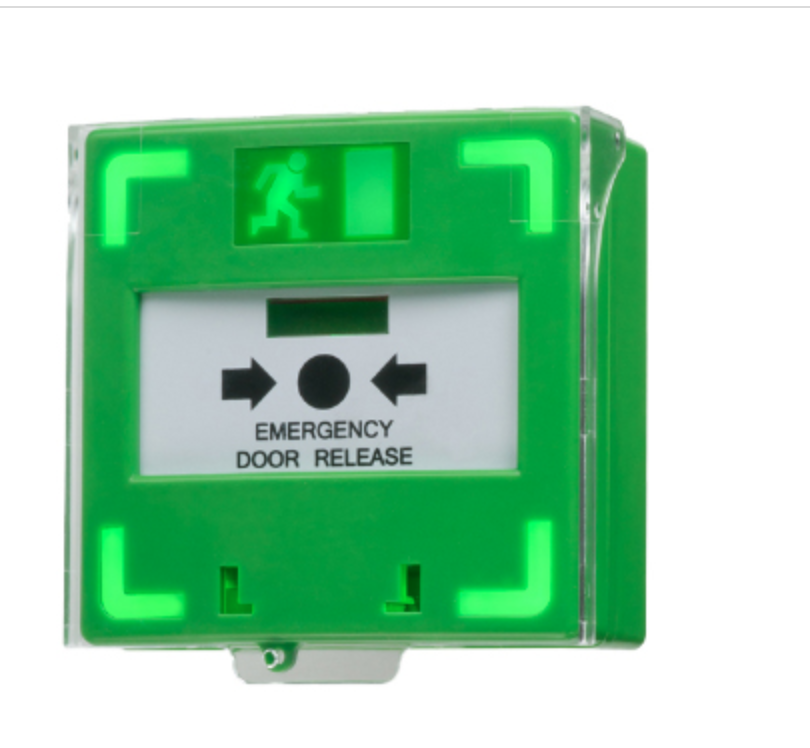

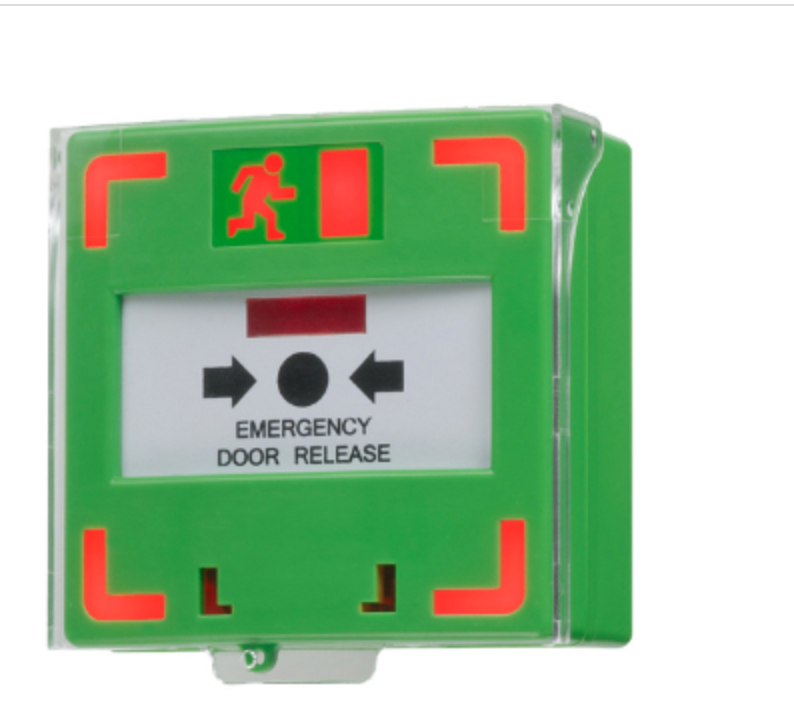

Security Alarm Reset Switch Call Point with Dual LED and Plastic Cover

Features

Product Name: Reset Switch Call Point with Dual LED

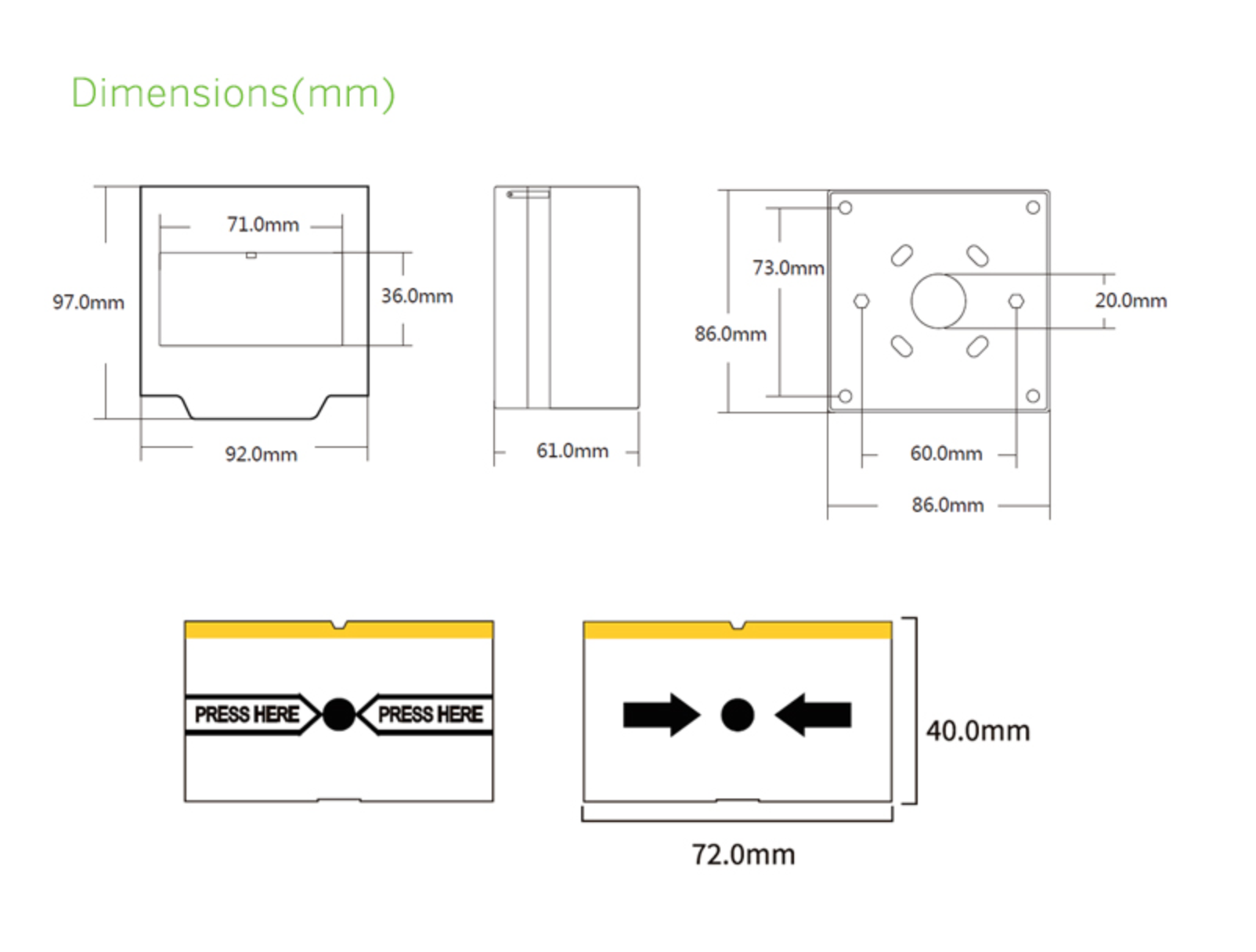

Dimensions: 90Lx93Wx45H(mm)

Material: ABS, PC (transparent part)

Surface: Surface Mount

Standard Structure: Fireproof Material, Easy to install

Operation current: DC 12V/18mA(Standby)/75mA(Operation) (±5%)

DC 24V/11mA(Standby)/41mA(Operation) (±5%)

Output: N.O.N.C.&COM. Output(Maximum load of 125V/3A)

Power Supply: DC12-DC 24V (±5%)

Buzzer: Set as silent, interval wailing or continuous wailing

Indicator: Dual-color(red and green) Red indicator to set blink, off or on

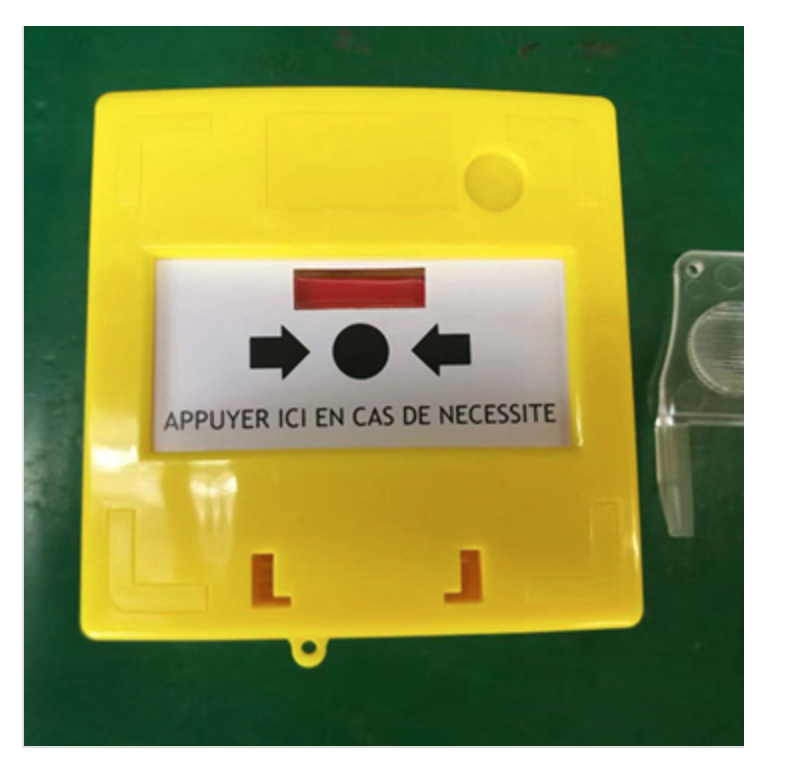

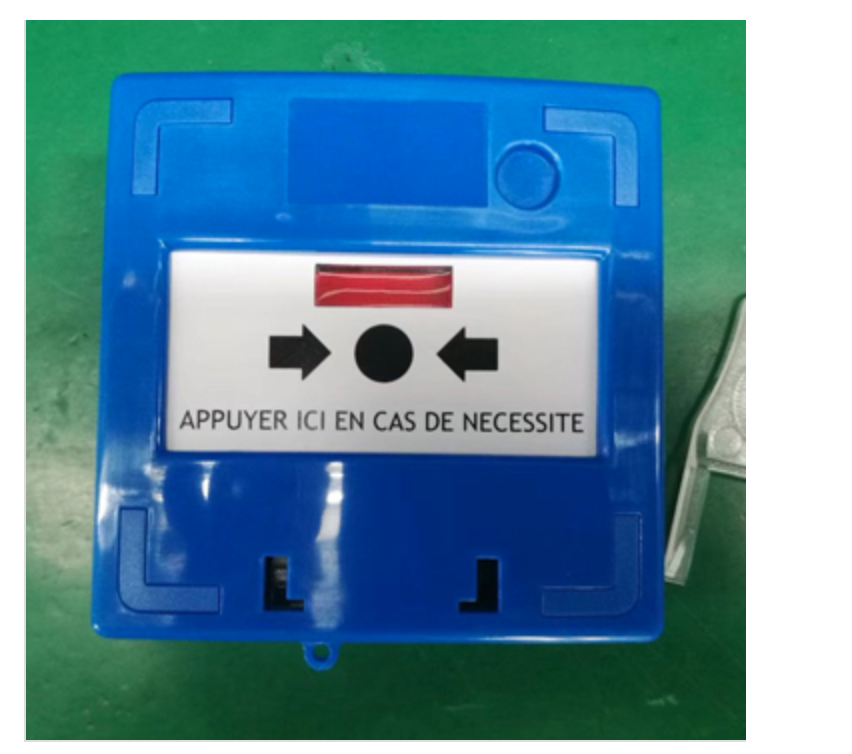

Color: Red,White,Green,Orange,Yellow,Black,Blue etc

OEM & ODM Support customized

Unit Weight: 0.2KG

Standard Package: 100PCS/carton

Carton Weight: 20KG

Carton Size: 50*45*24(cm)
