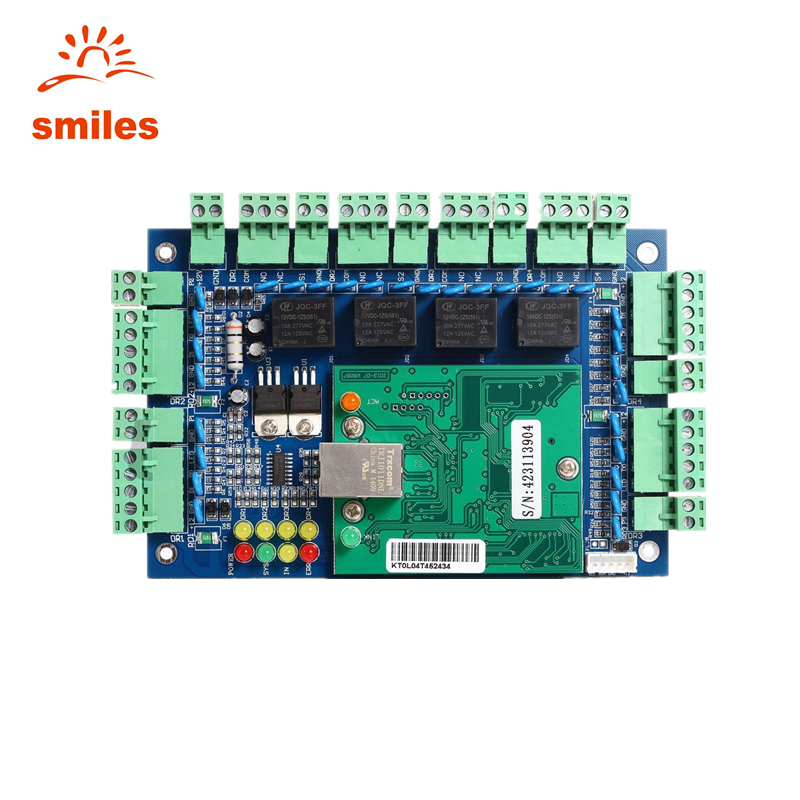

Access Controller Web Server Wiegand 26bits or 40bits Support 4 Doors

  • Model Number: CB04
  • Communication: TCP/IP
  • Capacity: 20,000 Users
  • Door Controlled: Four doors
  • INQUIRY

Specification

Product Name: TCP/IP Network Single Gate Controller

Communication: TCP/IP

Quantity of users: 20,000 Users

Door Controlled: Four

Software Supportable Database: SQL

Quantity of Event Buffers (offline): 100,000 event buffers


Features


Network Access Control board panel for access control system


Wiegand 26bits ~ 40bits input


20,000 users; 100,000 event buffers


Time & Attendance reporting


Door Controlled: 4 door (Get in by swiping card, get out door by button)


Door Opening Time Extending: Setting: 1~600 seconds (adjustable)


Max Quantity of Controller: Unlimited (Remark: N denotes q'ty of computer serial prot or q'ty of 485hub port, support 256pcs ports)


Alarm for Long Time Door Open, Unlawful Entry, Intimidate


Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm


Complsive open and close door at long time: Yes


Open door in remote distance: Yes


Inter block: Yes


Anti pass back and tail: Yes


Multi card open door: Yes


Open long time at specified time: Yes


Urgency locking: Yes


First card unlocking: Yes


Unlock based on internal and external validation: Yes
