Electric Drop Bolt Door Lock

  • Electric Drop Bolt Door Lock
  • Electric Drop Bolt Door Lock
  • Electric Drop Bolt Door Lock
  • Electric Drop Bolt Door Lock
Electric Drop Bolt Door LockElectric Drop Bolt Door LockElectric Drop Bolt Door LockElectric Drop Bolt Door Lock

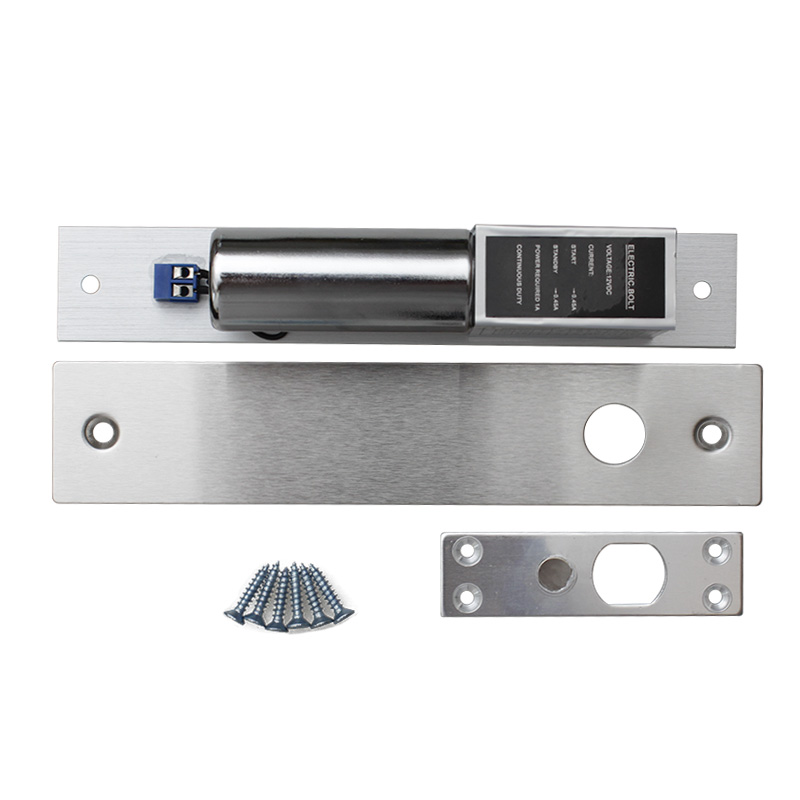

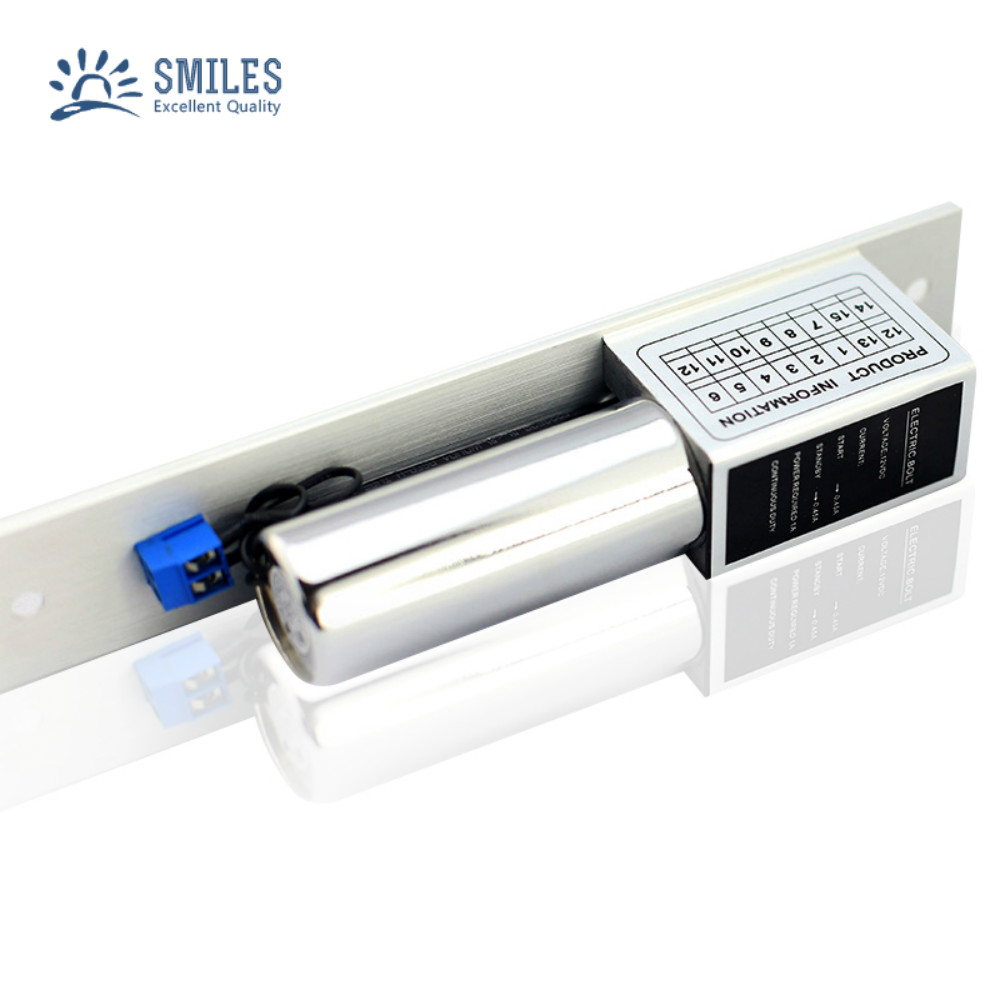

Electric Drop Bolt Door Lock

  • Model Number: EB05
  • Operating Modes: NC Fail Safe or NO Fail Secure
  • Suitable: Wooden door , Glass door ,Metal door , Fireproof door
  • Working voltage: DC 12V/1A
  • INQUIRY

Product Descripition


Product Name Normal Temperature Electric Bolt Lock
Feature Fail-safe type (Power to lock)

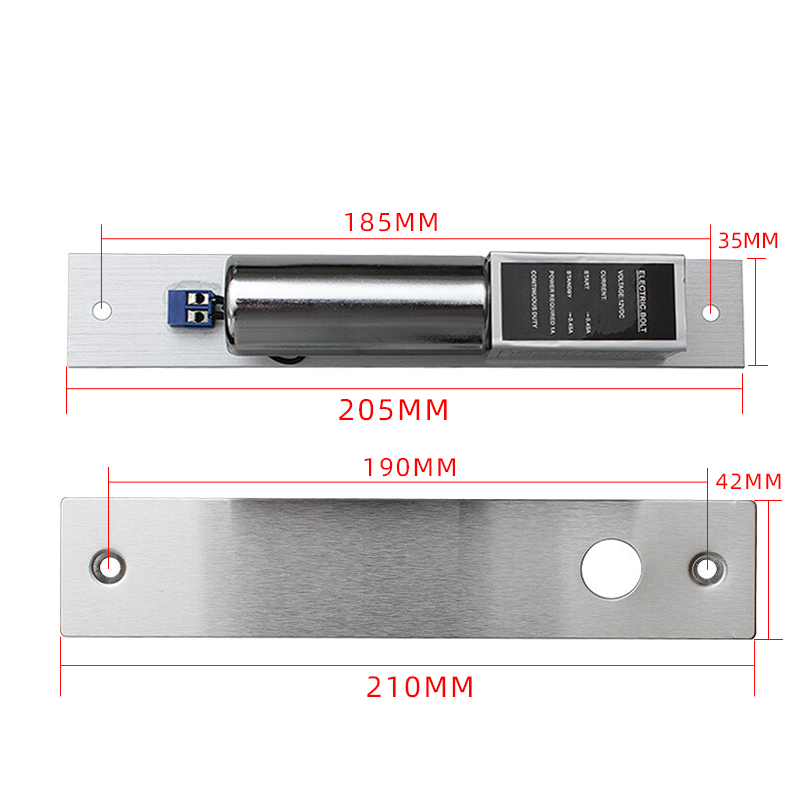

Face Plate default: 200Lx34WX42H(mm)
option: 205Lx34Wx42H(mm)
Voltage DC12V
Start Current 750mA
Standby Current 100mA
Solid Bolt polishing housing, 1000Kg Holding Force
Suitable For Wooden Door,Glass Door,Metal Door,Glass Door
Surface Temp Normal Temperature
Induction Distance 8mm
Operating temp -10~+55℃(14~131F)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 cycles
Face place material High Aluminum
Unit Weight 0.55KG
Standard Package 40PCS
Carton Weight 25.3KG
Carton Size 43*24*34.5 (cm)
