Electric Drop Bolt Door Lock

  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
  • 12V/24V Electric Drop Bolt Door Lock With Time Adjustable
12V/24V Electric Drop Bolt Door Lock With Time Adjustable 12V/24V Electric Drop Bolt Door Lock With Time Adjustable 12V/24V Electric Drop Bolt Door Lock With Time Adjustable 12V/24V Electric Drop Bolt Door Lock With Time Adjustable 12V/24V Electric Drop Bolt Door Lock With Time Adjustable 12V/24V Electric Drop Bolt Door Lock With Time Adjustable

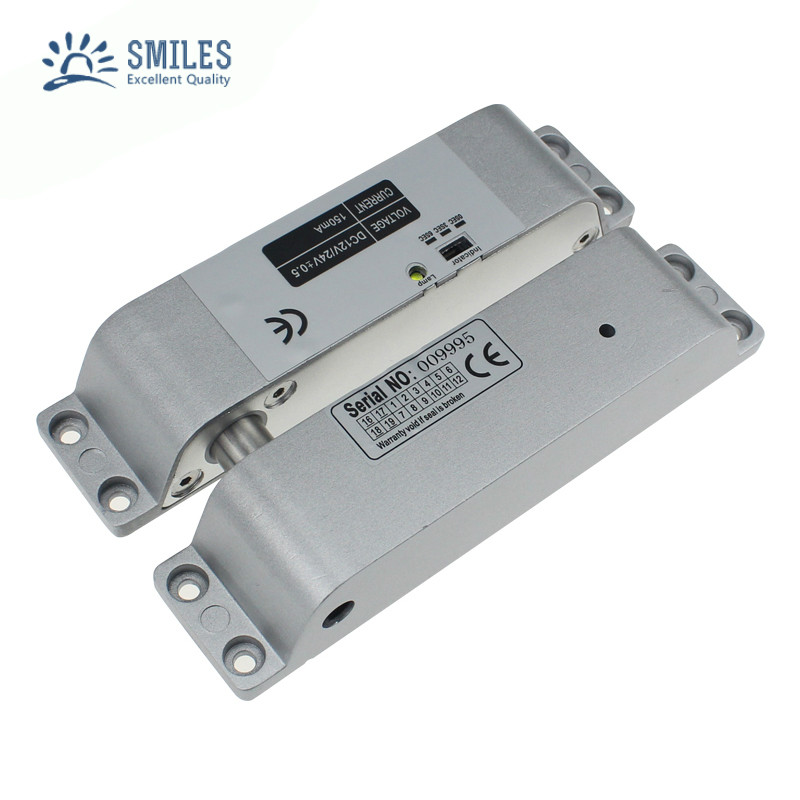

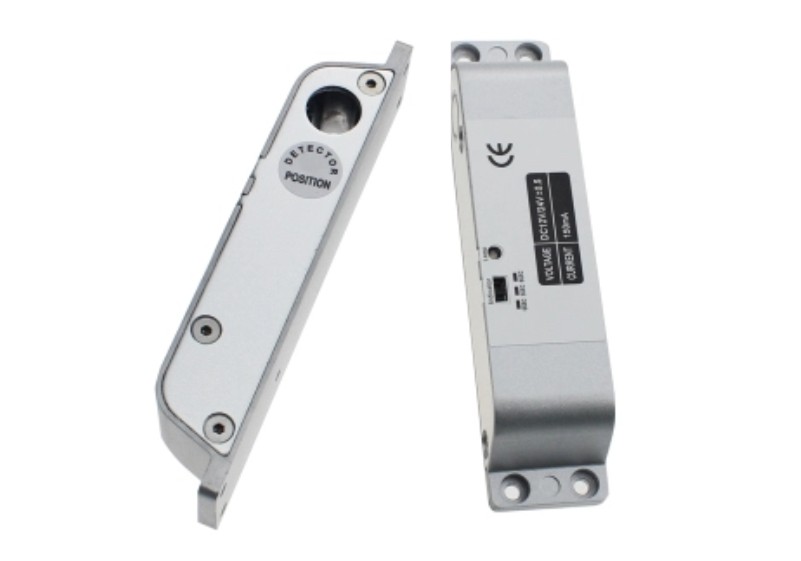

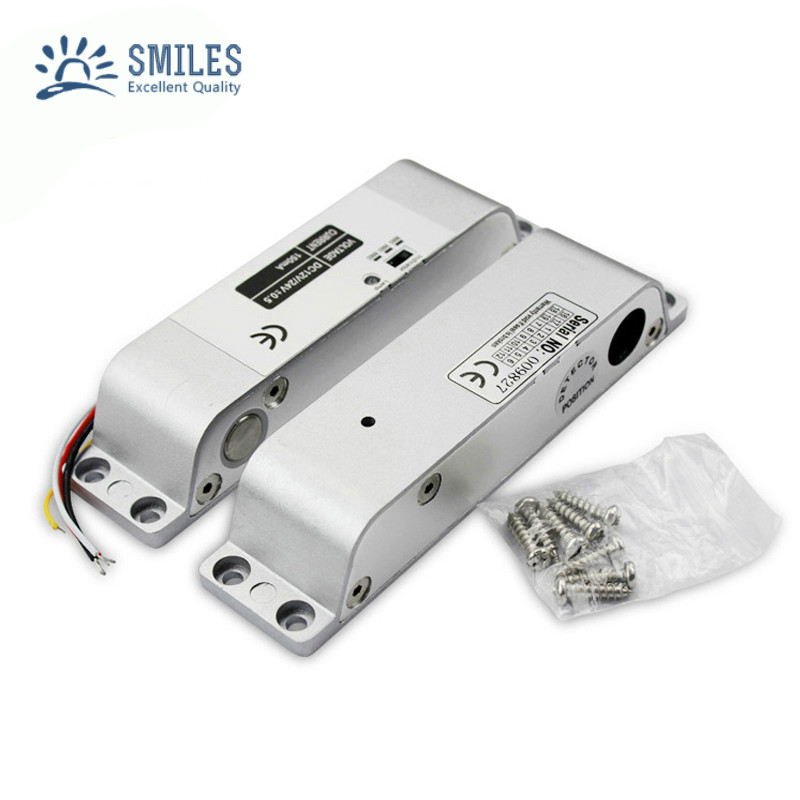

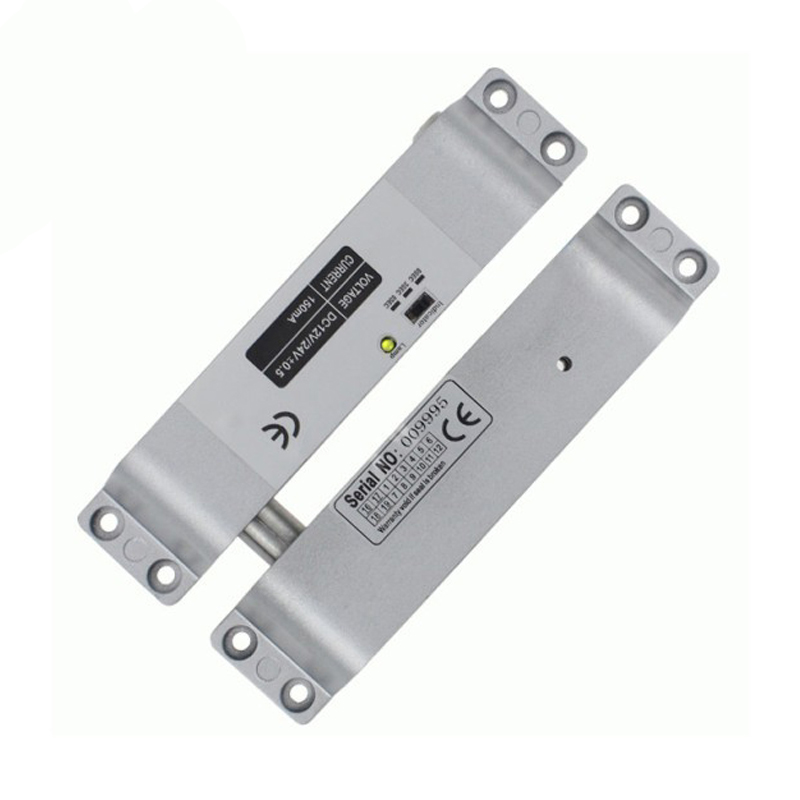

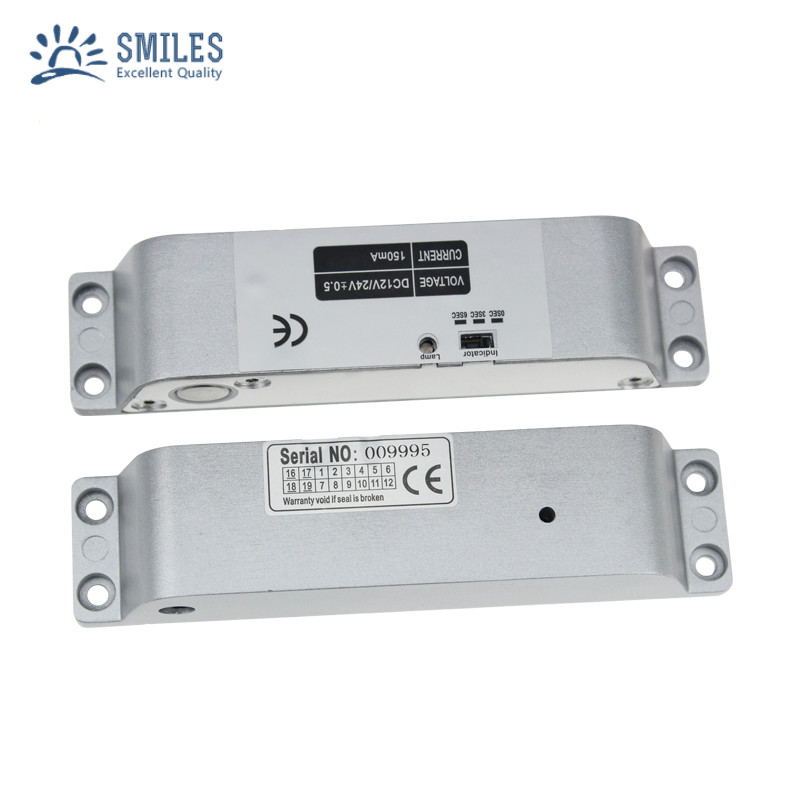

12V/24V Electric Drop Bolt Door Lock With Time Adjustable

  • Model Number: EB10
  • Voltage: DC12V (24V is customized)
  • Smart Door Lock: Hanging with Timer
  • Lock body: 150X34X28mm
  • INQUIRY

Specification


Product Name: Electric Bolt Lock Hanging with Timer

Feature: Fail-safe type (Power to lock)

Face Plate: 150Lx40WX37H(mm)

Bolt: 16(length)*13(diameter)(mm)

Voltage: DC12V(DC24V)

Start Current: 960mA

Standby Current:  180mA

Solid Bolt: polishing housing, 1000kg Holding Force

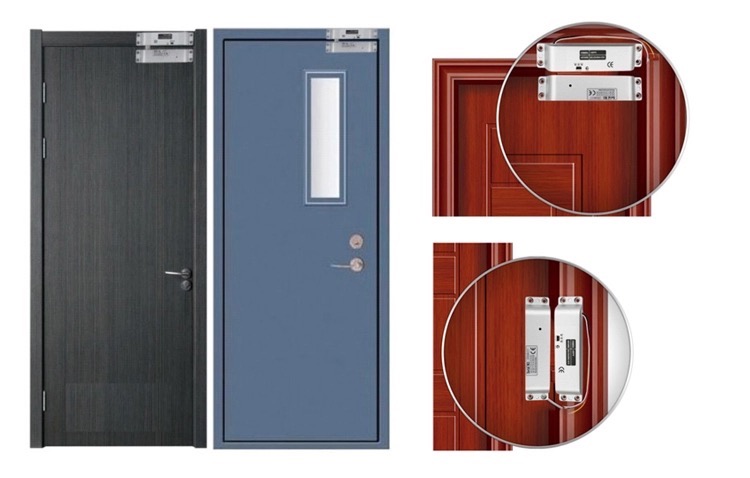

Suitable For: 12mm Electric Bolt  For Fully Frameless Glass Door

Signal Output:  Door status Output,NC/COM

LED: Light on indicates locked, light off indicates unlocked

Surface Temp:  Low Temperature

Induction Distance: 8mm

Special Designed: Tested to 500000 operations

Face place material:  Stainless Steel

Weight:  1.36kg

Standard Package: 40PCS

Carton Weight: 21.5KG

Carton Size:   47*26*40 (cm)
