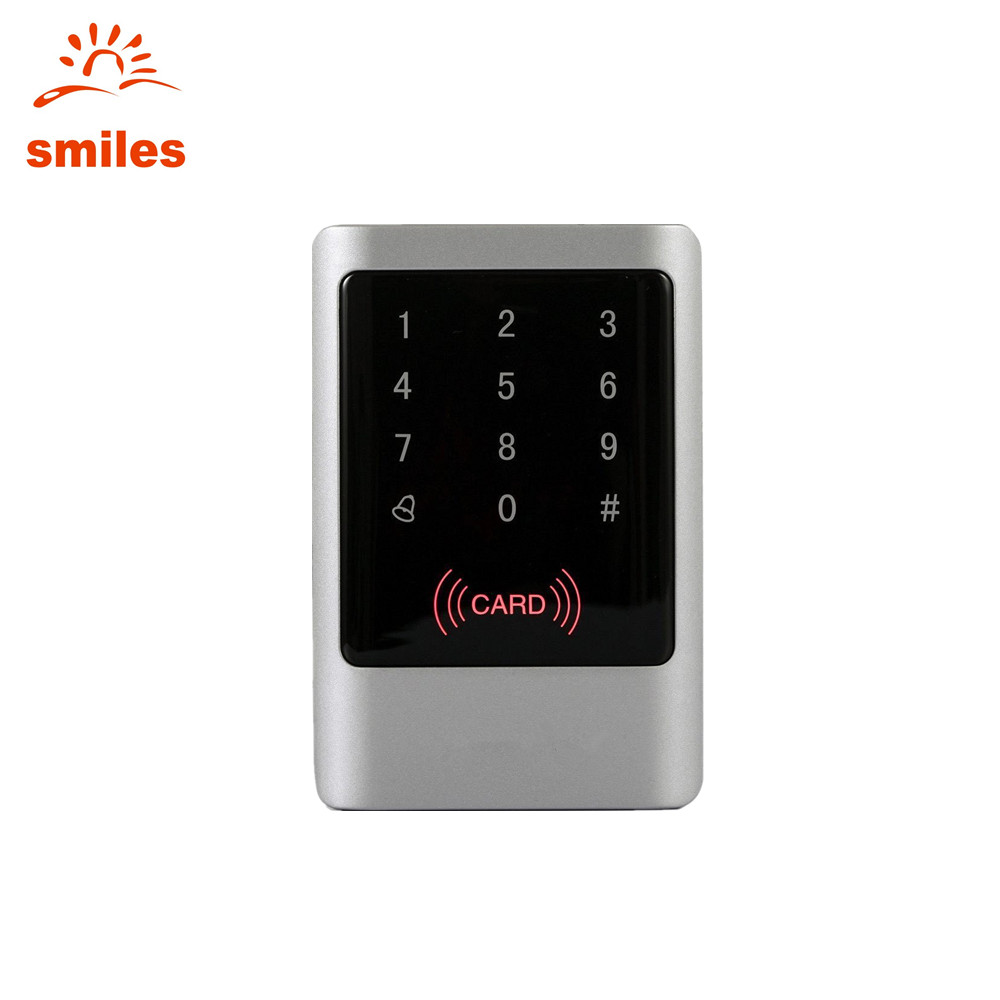

Fashion Metal Waterproof Proximity Reader Access Control System

Product Descripition

Specification

Product Name: Metal Standalone RFID Door Access Control

User Capacity: 1000 Users

Card Reading Distance: 1~15cm

Waterproof degree: IP65

Wiegand Interface: Wiegand 26 input

Size: 120*78*22mm

Features

Working frequency: 125khz or 13.56mhz

User capacity:  1,000 users

Standard interface: Wiegand 26 input

Work Voltage: DC 12V

Operating current: < 100mA

Reading Range: 1~15cm

Waterproof degree: IP65

Work Temperature: 0°C—60°C

Electricity lock output: ≤3A

Alarm output: ≤20A

Output short circuit protection time: ≤100μS

Size: 120(L) x 78(W) x 22(H) mm

Weight: 500g
