Metal Access Control

  • Fashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads
  • Fashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads
  • Fashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads
  • Fashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads
Fashion Touchscreen RFID Access Control Reader/Metal EM Door KeypadsFashion Touchscreen RFID Access Control Reader/Metal EM Door KeypadsFashion Touchscreen RFID Access Control Reader/Metal EM Door KeypadsFashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads

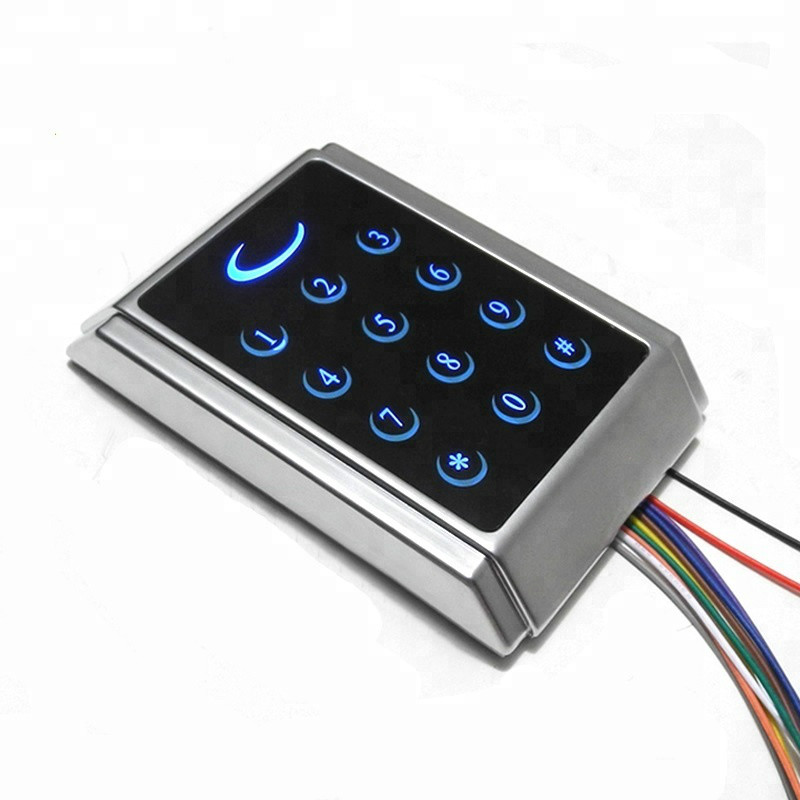

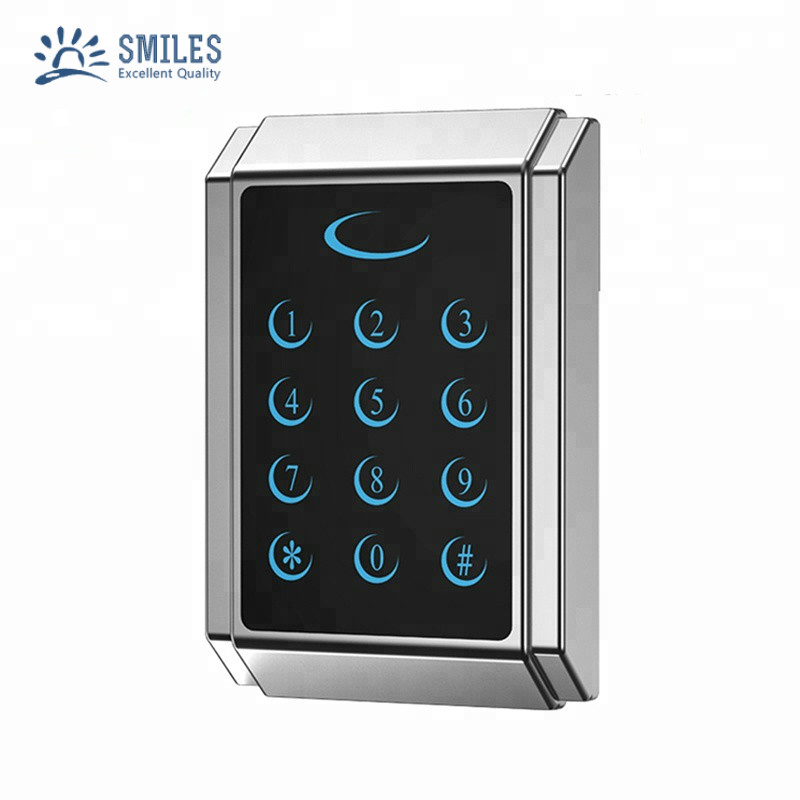

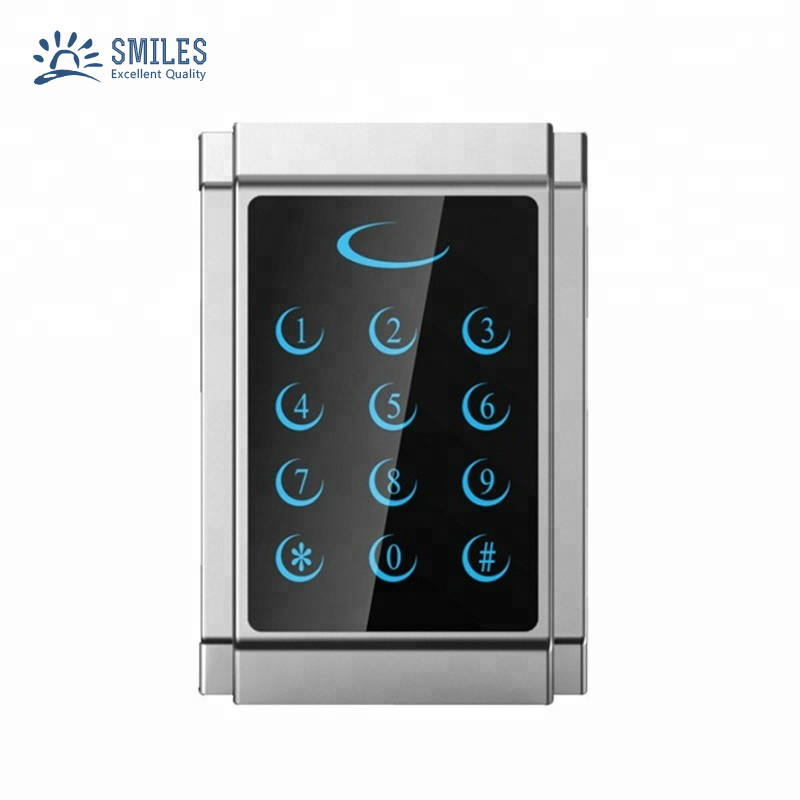

Fashion Touchscreen RFID Access Control Reader/Metal EM Door Keypads

  • Model Number: S030
  • Work Voltage: DC12-24V
  • ccess ways: cards ,code,card +code
  • Card type: 125KHZ / 13.56MHZ
  • INQUIRY

Features



Strong Zinc Alloy Electroplated anti-vandal case


Full programming from the keypad


2000 users,Supports Card, PIN, Card + PIN


Can be used as a stand alone keypad


Backlight keys


Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller


Adjustable door output time,alarm time,door open time


Very low power consumption (30mA)


Fast operationg speed,<20ms with 2000 users


Lock output current short circuit protection


Easy to install and program


Built-in light dependent resistor (LDR) for anti tamper


Buili-in buzzer


Red,yellow and green LEDs display the working status
