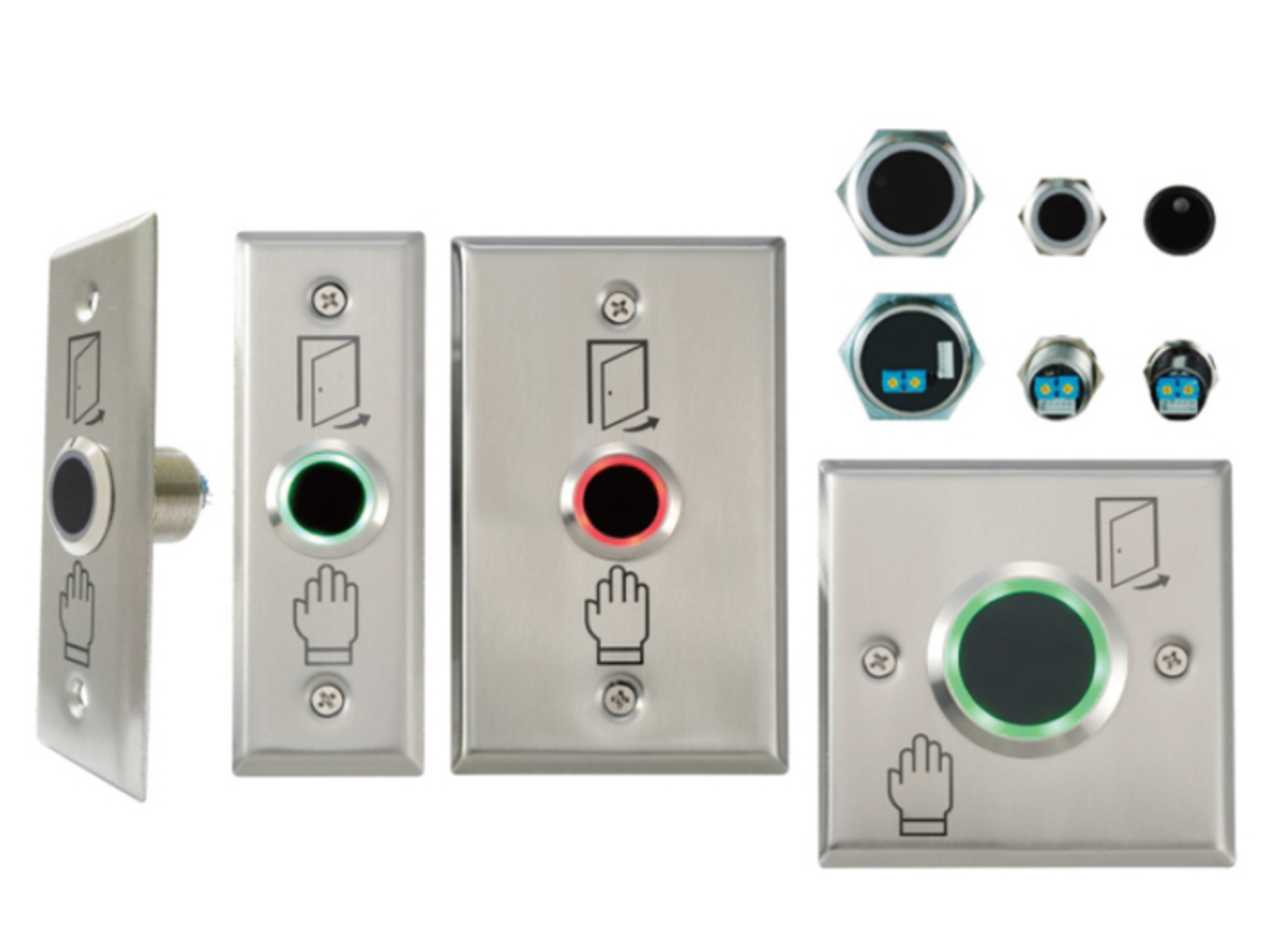

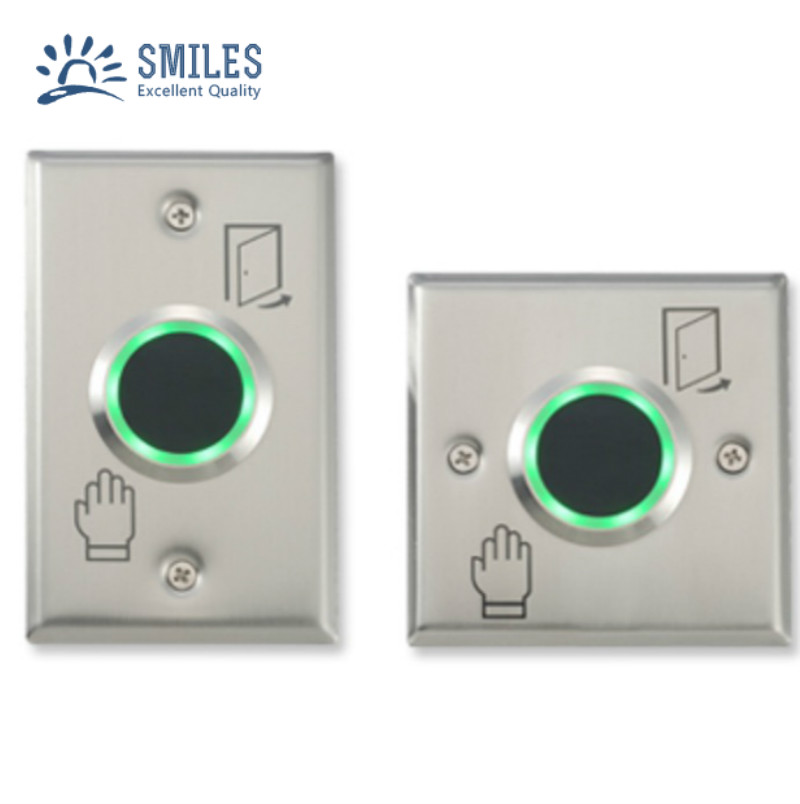

No touch exit button
Non touch Exit Button Support Time and Distance Adjustable
- Model Number: EX019
- Max. Current: AC120V/3A, DC30V/3A
- Output delay time: 0.5 ~ 20 Seconds, set 20 sec as toggle mode
- Input Voltage: DC 12 ~ 24V ± 10%
Power input: DC 12 ~ 24V ± 10%
Contact Load: 0.5A @ AC120V / 1A @ DC24V
Range: 4 ~ 375px ( ± 25% )
Output State: Trigger state ( 0.5 ~ 20 sec ) or toggle mode output
N.C & N.O output
Output delay time: 0.5 ~ 20 Seconds, set 20 sec as toggle mode
Water resistant IP: IP65
Lift time: Relay mechanical lifespan: 1000,000
Infrared Sesnsor: 100,000 hours
State Indicator: Red and Green Double-colored LED light
Operation Temp.: -10℃~ 70℃
Unit Weight: 0.16KG
Standard Package: 50PCS/carton
Carton Weight: 8KG
Carton Size: 45*32*24(cm)
