No touch exit button

  • Infrared Sensor Contactless Exit Button
  • Infrared Sensor Contactless Exit Button
  • Infrared Sensor Contactless Exit Button
  • Infrared Sensor Contactless Exit Button
  • Infrared Sensor Contactless Exit Button
Infrared Sensor Contactless Exit ButtonInfrared Sensor Contactless Exit ButtonInfrared Sensor Contactless Exit ButtonInfrared Sensor Contactless Exit ButtonInfrared Sensor Contactless Exit Button

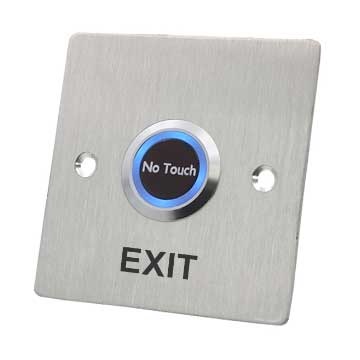

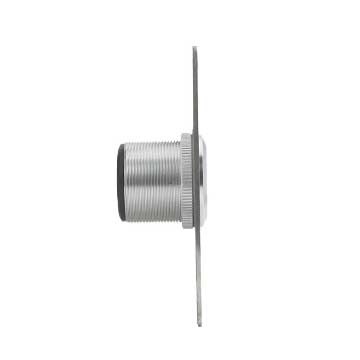

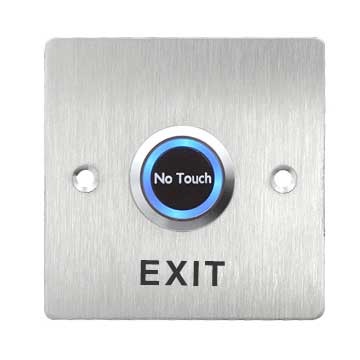

Infrared Sensor Contactless Exit Button

  • Model Number: EX86SS
  • Material: 1.7mm Thick 304 Stainless steel
  • Contact Rating:12-24V,3A

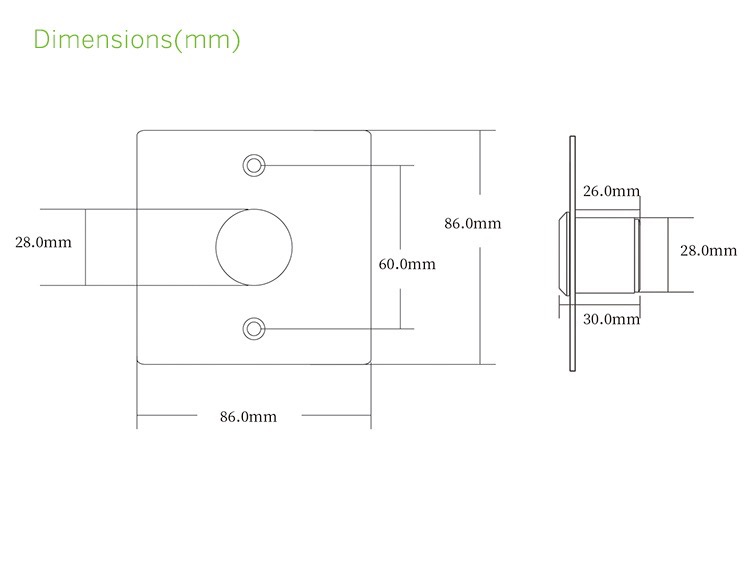

  • Dimensions: 86Lx86Wx25H(mm)
  • INQUIRY

Product Name: Infrared Sensor Exit Button

Material:  1.7mm Thick 304 Stainless steel

Dimensions:  86Lx86Wx25H(mm)

Contact Rating: 12-24V,3A

Power:  12VDC & 24VDC

Sensor distance:  5-10CM

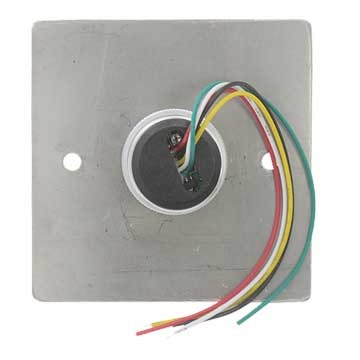

Output:  NO/NC/COM/+12/GND

Mechanical Life: 500,000 Tested

Operating Temp:  -20℃~+55℃(14-131F)

Operating Humidity:  0-95%(relative humidity)

LED Indicator: Blue LED Indicator (Standby), Green LED Indicator (Sensation)

Suitable for Door:  Hollow Door

Unit Weight:  0.13kg

Standard Package:  100PCS/carton

Carton Weight: 14KG

Carton Size: 51*45*24cm
