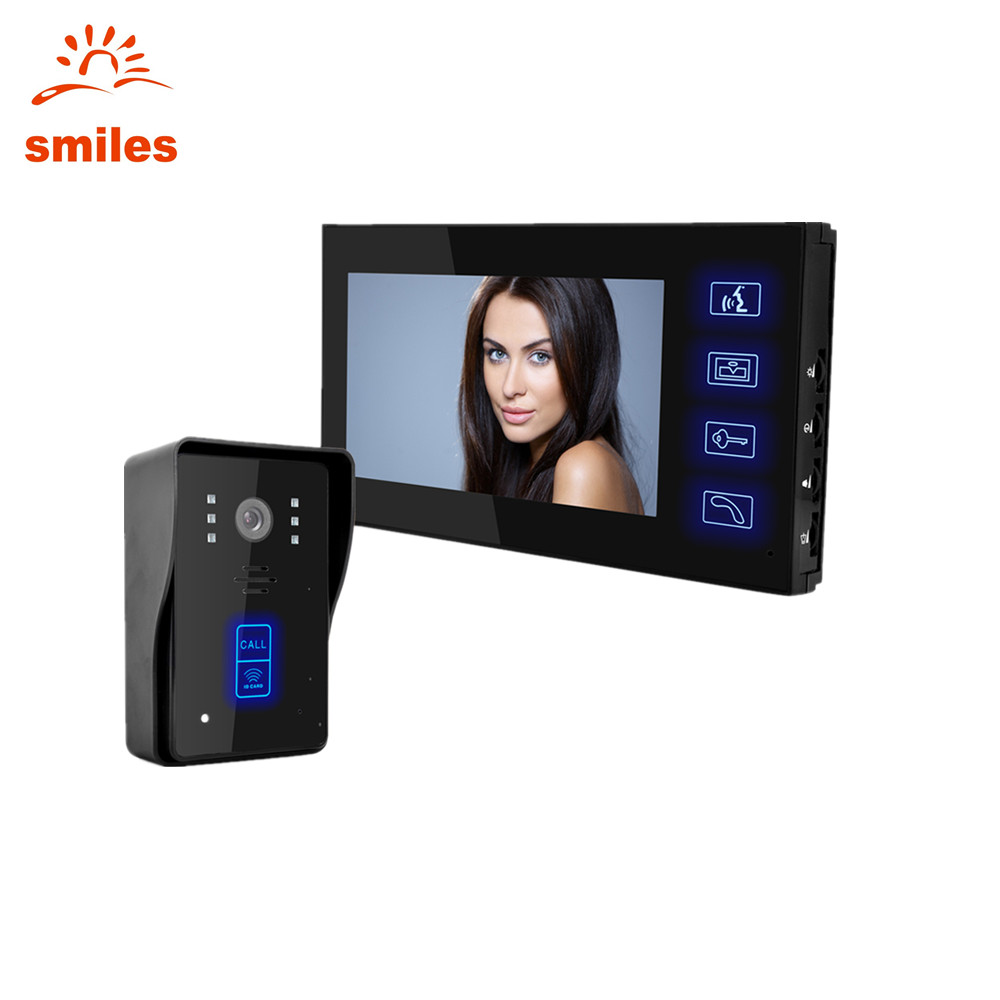

Luxury Household Security Video Doorbell Camera Intercom
- Model Number: VD07
- LCD Screen Size: 7
- Power: AC 100V-240V 50/60 Hz
- Infrared induction: Light sensor

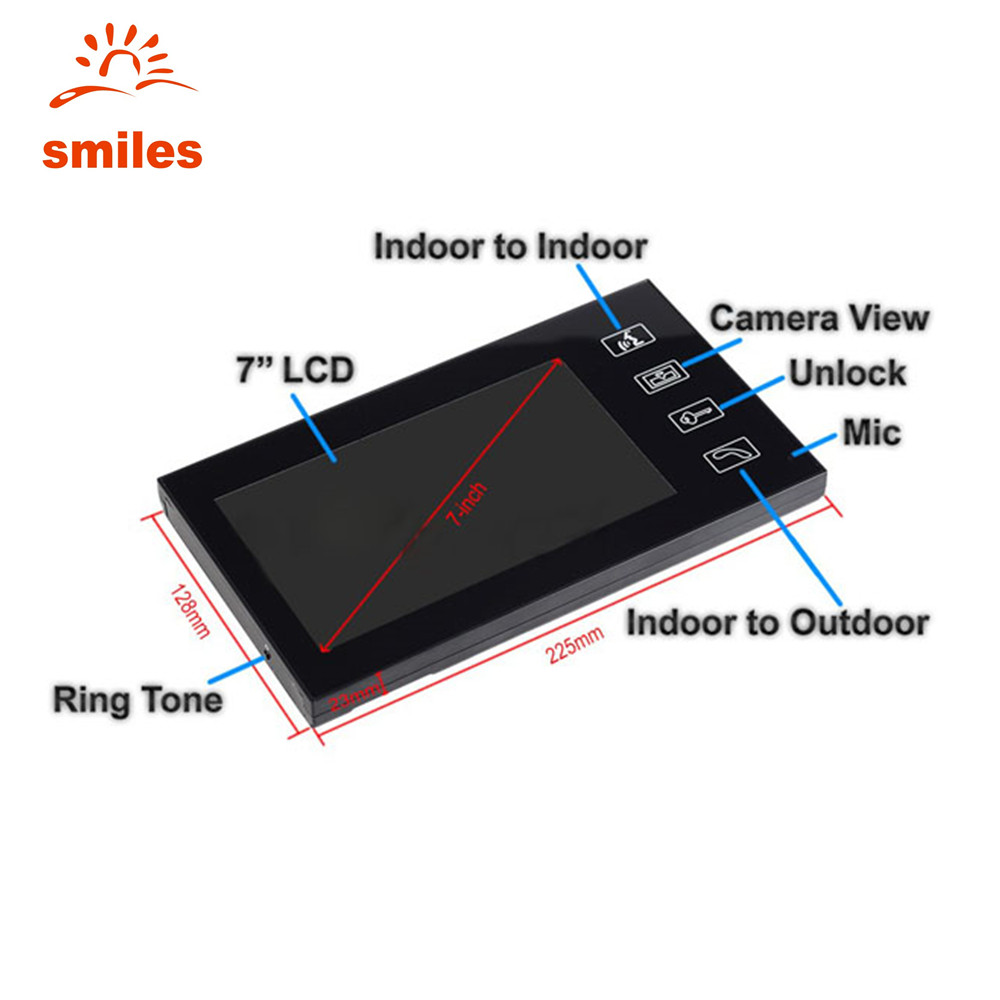

Product Name: 7” Color Wired Video Door Phone
Screen: 7 inch digital screen
Installation mode: Wall-hung type
Camera viewing angle: 92 degrees
Infrared induction: Light sensor
The four-line we produced is a luxury household security product for one-family buildings or upscale villas. It adopts advanced technology and the latest computer chips which highly improves the stability and durability of the system.
The product has: hands-free monitor and two-way intercom, high-definition visibility, lock control, infrared night-vision outdoor station, adjustable intercom volume and screen color, pictures or videos can be read or stored when the memory card is inserted and so on.
This product can meet different clients' requirements, such as one-to-one, one-to-two, one-to-three, one-to-four, two-to-one, two-to-two, two-to-three, two-to-four.
This product has fashionable and beautiful appearance, and it adopts the design of ultrathin wall mounting type which makes this product light and convenient. This special design helps it make full use of smaller space. Apart from those, it can also be regarded as a peculiar decoration to beautify your house and brings about comfortable life.
Functions of this product are reliable and convenient to use and install. Hence, this product is the ideal theft prevention equipment.
It is widely used in single-family houses, villas, office and so on, meanwhile it also the ideal present giving to friends or relatives.
1、 Aluminum alloy panel of indoor unit, fashionable and luxury.
2、 Water & oxidation-proof, durable aluminum alloy made outdoor station
3、 7”color TFT LCD. No radiation, low power consumption and high definition
4、 The camera could be high definition
5、 Handfree intercom
6、 Electric lock-control function
7、 Monitor the view out of the door.
8、 16kinds of rings for your options.

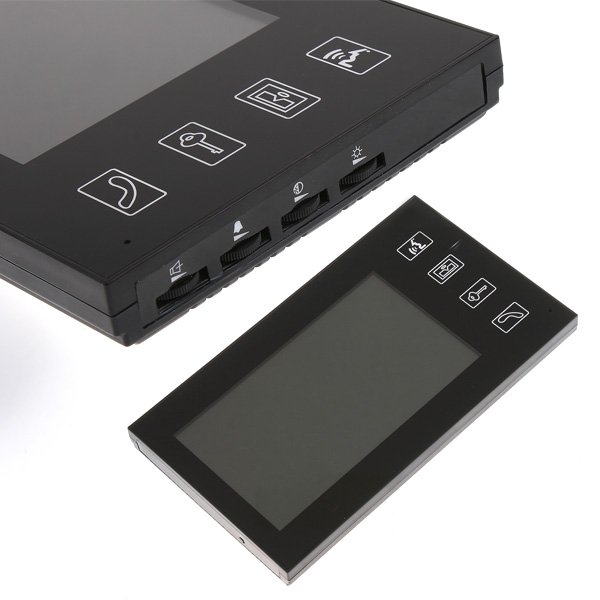

9、 Volume, brightness & contrast adjustable.
10、With adapter and cable, users could install it by them-self
11、With micro-processing technology, auto-remote control, excellent performance and high

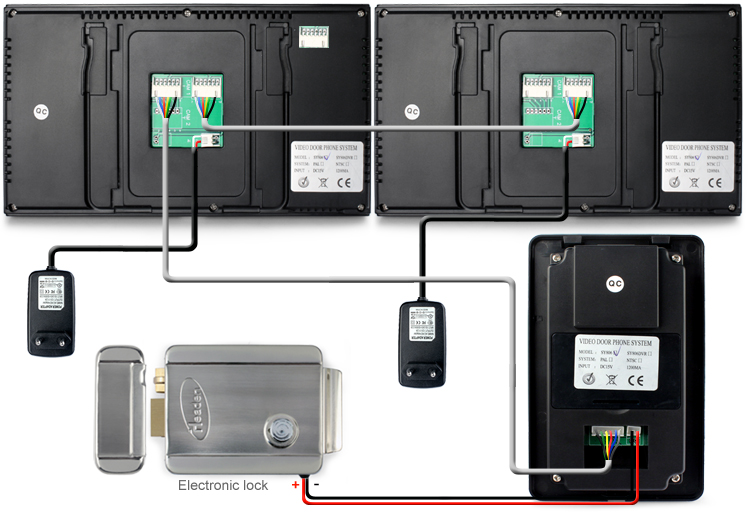

(1) Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.
(2) Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.
(3) Press the calling button, then the indoor monitor will hear the ringtones and show the image.
(4) Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).
(5) Press the talkback key and check whether indoor and outdoor talkback works normally.
(6) Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.
(7) For more than 2 indoor monitors, press the intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.
(8) Under the intercom mode, press the unlock button to check whether unlock works normally.
(9) You can safely use the product upon passed acceptance mentioned above.
(1) The machine should be placed on the place with solid, well-ventilated, dry and no direct sunlight, no strong magnetic fields and dust.
(2) Do not use chemical to clean the surface; clean, soft and dry cloth can be used to clean.
(3) Avoid to press multiple keys at the same time；
(4) Outdoor and indoor unit needs to match with specified models, and can not mix to use with other models or other company's product；
Do not open the machine without permission, please contact with your dealer or our technical department if you need any maintenance
