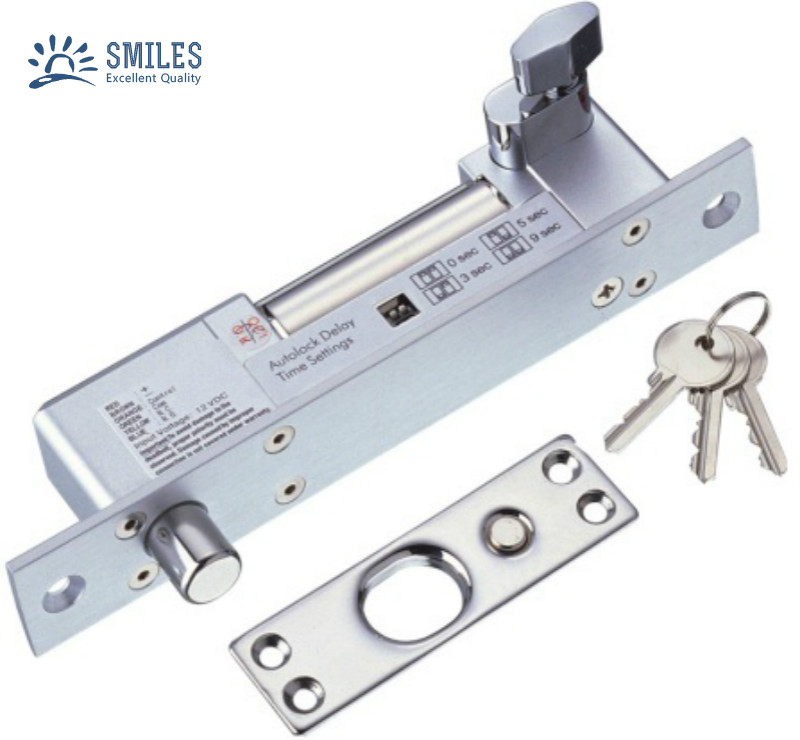

Electric Drop Bolt Door Lock

  •  NO Electric Drop Deadbolt Door lock with key
  •  NO Electric Drop Deadbolt Door lock with key
 NO Electric Drop Deadbolt Door lock with key  NO Electric Drop Deadbolt Door lock with key

NO Electric Drop Deadbolt Door lock with key

  • Model Number: EB12
  • Material: Stainless Steel
  • Bolt Type: NO/NC
  • Voltage: DC12V-24V
  • INQUIRY

Fail-secure type:  (power to open) with MOV surge protection for higher security places.


Built-in door open or door close state detection output point (250mA: N.C./ N.O.).


Suitable for: 180° door.


Stainless steel bolt is able to sustain more than 1200 kg of shear force.


Long unlock state function.


"Built-in oval cylinder as unlocking device.


Use of oval cylinder to unlock when power cut occurred or during emergency."


"Built-in photo couplers door open push button input contact.


Door will lock again automatically  when door is not open within 5 seconds."


Operation temperature:0~90℃ ; Humidity:85%Rh max.

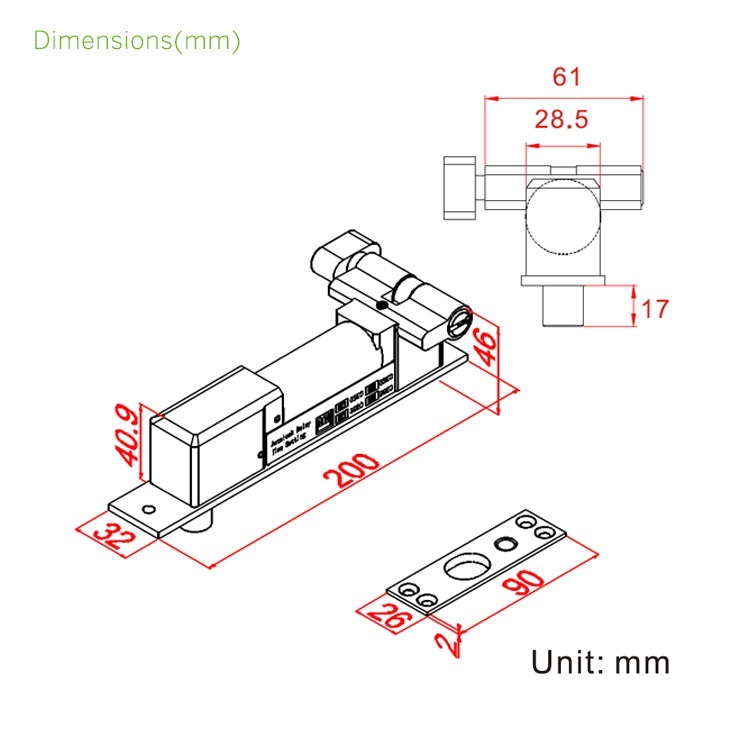

Dimensions:


Body:200 L) x 32(W) x 46(D) (mm)


Strike plate:90(L) x 26(W) x 2.5(D) (mm)


Bolt:17(Throw) x 15.5(Diameter) (mm)


Weight:1100g


Certification:CE
