Door Access Control

  • Fashion Metal Waterproof Proximity Reader Access Control System
  • Fashion Metal Waterproof Proximity Reader Access Control System
Fashion Metal Waterproof Proximity Reader Access Control SystemFashion Metal Waterproof Proximity Reader Access Control System

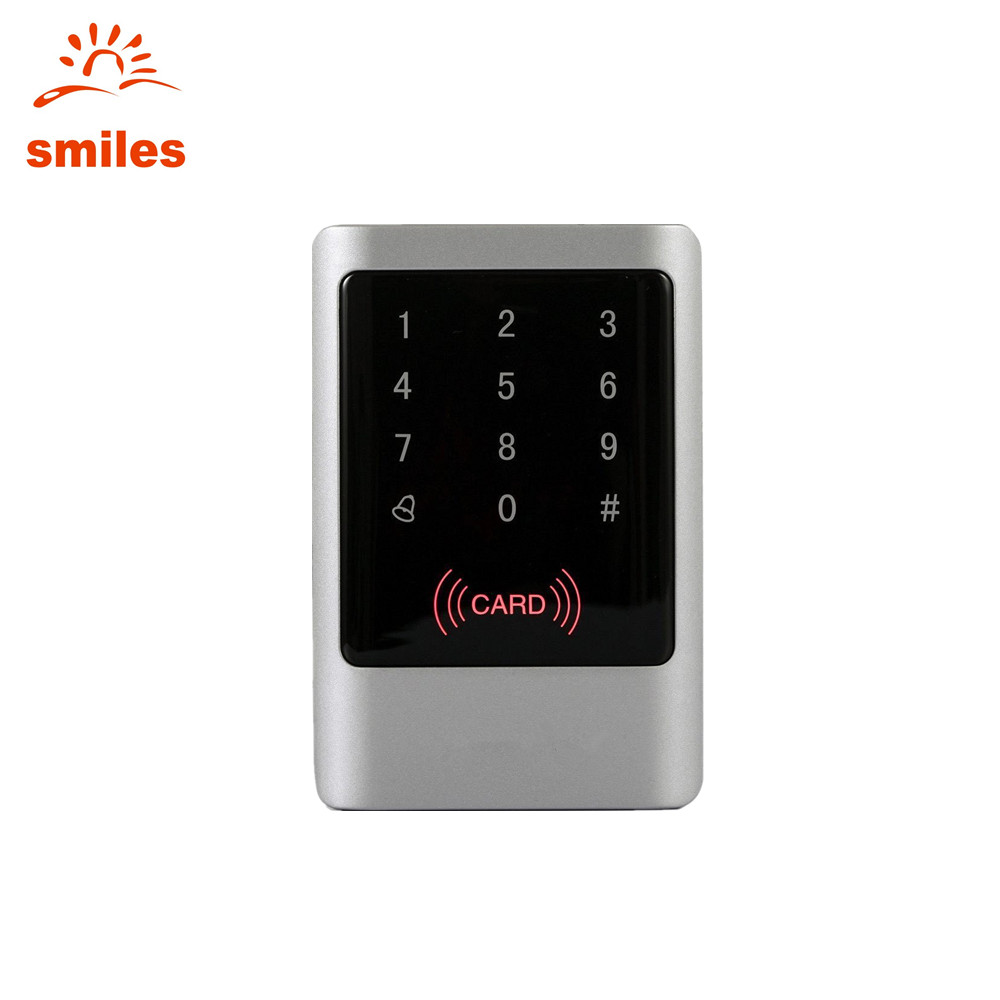

Fashion Metal Waterproof Proximity Reader Access Control System

  • Model Number: S011
  • User Capacity 1000 Users
  • Waterproof degree IP65
  • Wiegand Interface Wiegand 26 input
  • INQUIRY

Product Descripition


Specification

Product Name: Metal Standalone RFID Door Access Control

User Capacity: 1000 Users

Card Reading Distance: 1~15cm

Waterproof degree: IP65

Wiegand Interface: Wiegand 26 input

Size: 120*78*22mm


Features

Working frequency: 125khz or 13.56mhz


User capacity:  1,000 users


Standard interface: Wiegand 26 input


Work Voltage: DC 12V


Operating current: < 100mA


Reading Range: 1~15cm


Waterproof degree: IP65


Work Temperature: 0°C—60°C


Electricity lock output: ≤3A


Alarm output: ≤20A


Output short circuit protection time: ≤100μS


Size: 120(L) x 78(W) x 22(H) mm


Weight: 500g
