Door Access Control

  • Weatherproof Access Control Metal Door Keypads
  • Weatherproof Access Control Metal Door Keypads
Weatherproof Access Control Metal Door KeypadsWeatherproof Access Control Metal Door Keypads

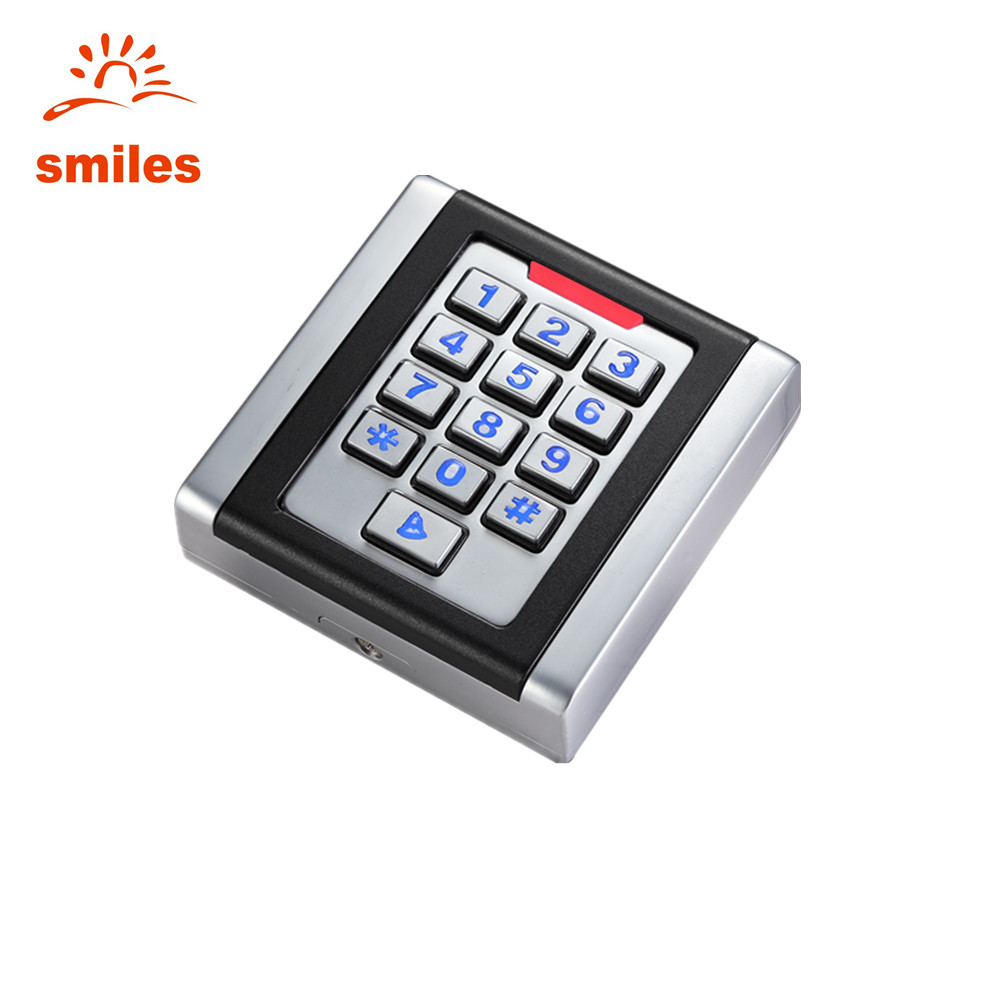

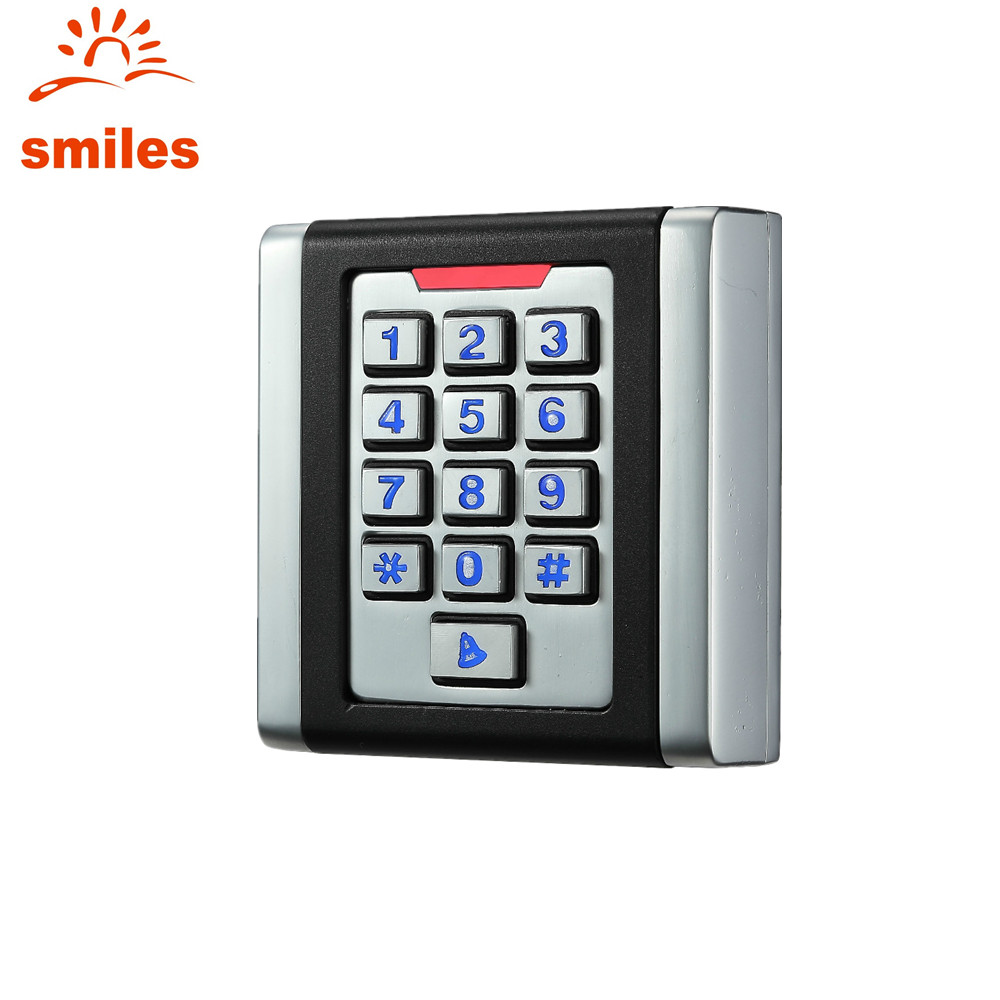

Weatherproof Access Control Metal Door Keypads

  • Model Number: S010
  • Work Voltage: DC9-28V
  • Capacity: 2000 users
  • Access ways: cards ,code,card +code
  • INQUIRY


Product Descripition

Specification

Product Name: Access Control system

User Capacity: 2000

Card Reading Distance: 5~8cm

Current: <30mA (Standby); <60mA (Active)

Wiegand Interface: Wiegand 26 bit

Size: 86*86*23(mm)


Features


Strong Zinc Alloy Electroplated anti-vandal case


Full programming from the keypad


2000 users,Supports Card, PIN, Card + PIN


Can be used as a stand alone keypad


Backlight keys


Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller


Adjustable door output time,alarm time,door open time


Very low power consumption (30mA)


Fast operationg speed,<20ms with 2000 users


Lock output current short circuit protection


Easy to install and program


Built-in light dependent resistor (LDR) for anti tamper


Buili-in buzzer


Red,yellow and green LEDs display the working status
